Vision Measuring System

Vision Measuring System

Vision Measuring System
CategoriesVideo Measuring System

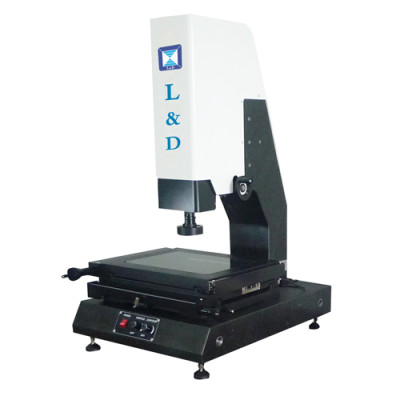

AlbumView larger image
BrandL&D
ModelSV series
FOB portShenzhen
Terms of PaymentT/T
Update Time2020-11-27
Detail Information

  • Vision Measuring System

  • SV Series

  •

  • Description

    •
      Non-Contact Optical video Measurement system(SV series) is widely used in the measuring machinery, electronics, mold, injection molding, metal, rubber, low voltage electrical, magnetic materials, precision metal, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers (PCs), LCD TV (LCD), a printed circuit board (circuit board, PCB), automotive, medical equipment, clocks, screws, springs, instruments, gears, cams, threads, radii template, template thread, wire and cable, tools, bearings, screen, test sieve, sieve cement, net plate (steel mesh, SMT template), and other

  • Specification

    •
      Model No.
      SV-2010
      SV-3020
      SV-4030
      SV-5040
      Travel-X.Y axis(mm)
      200*100
      300*200
      400*300
      500*400
      Travel-Z axis (mm)
      180
      180
      180
      180
      Z-axis working range(mm)
      90mm for focus
      90mm for focus
      90mm for focus
      90mm for focus
      Feed mechanism of X,Y axis
      Manual
      Z axis motor
      Japan Panasonic servo motor
      Resolution
      0.5µm
      X,Y-axis accuracy
      (E1=3+L/200  )µm   L=measuring length(mm)
      Digital Resolution
      0.001mm
      Repeatability
      0.003mm
      Metal table size (mm)
      356x256
      456×356
      606x456
      706x556
      Glass table size (mm)
      260x154
      360x254
      460x354
      560x454
      Stage load capacity(kg)
      15
      15
      20
      20
      Dimension L*W*H(mm)
      550x560x1000
      680x600x1030
      850x700x1080
      950x800x1100
      Weight(kg)
      140
      160
      230
      350
      Power Supply
      100V-120V/200-240V AC, 50/60HZ

  • Standard Delivery

    •
        Main unit
        Metrology 2D measuring software
        USB encoder interface
        Continuous zoom lens 0.7x-4.5x
        1/3'' High resolution color CCD camera Standard scale
        LED cold Light sources for surface and contour illumination
        Anti-dust cover
        English user manual

  • Optional Accessories

    •
      •  0.5x additional lens
      •  2x additional lens
      •  Metrology Counter
      •  Learning kit
      •  Calibration gauge
      •  Renishaw (U.K.) MCP trigger probe
      •  PC with original Windows 7 operating system
