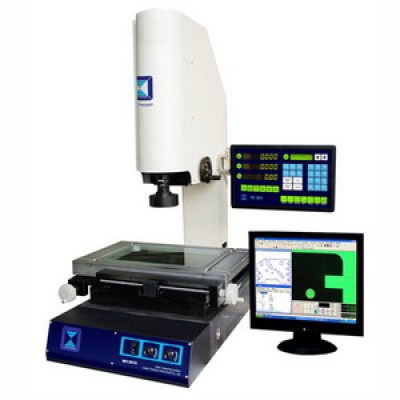

Non-contact Vision Measuring System( EV Series)



Application

Video Measuring System EV Series are suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.


Usage

 This non-contact Vision Measuring System comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. this optical inspect instrument is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.


Features


•  Solid granite frame guarantees strength, accuracy and stability
•  Precision stages are available
•  Higher resolution linear encoder 0.5µm
  Superb full-color high resolution image with zoom optics( Zoom lens 0.58x-7.5x  (Electronic feedback from Lens (0.58X-7.5X), so when you change lens magnification, the lens will give feedback to measuring software,
software will recall the pixel calibration under that magnification automatically.)
  Sighting device: cross-hair generator
  Connection: RS232 or USB output and metrology software
  Gigabit network color CCD camera (Camera is with more wide filed.)
  New DC3000 geometric DRO
  One-click edge detection
  Auccracy:(2.5+L/150)μm, of which, L=length of the work piece measured (unit: mm)


Specifications


Model NoEV-1510EV-2010EV-2515EV-3020EV-4030
Travel-X.Y axis(mm)150*100200*100250*150300*200400*300
Travel-Z axis200200200200200
Stage size354*228404*228450*280500*330606*466
Stage load capacity   10kg10kg15kg20kg 25kg
Dimension L*W*H540*560*850540*560*850760x600x900760x600x900970x670x940
Net weight98kg108kg120kg138kg238kg




 Dimension
