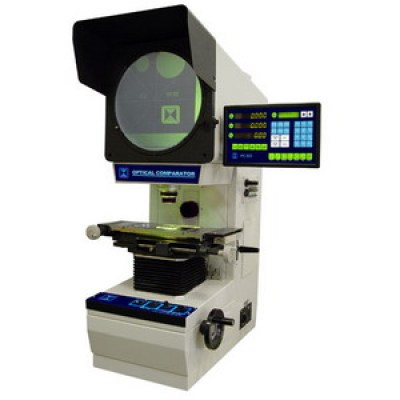

Optical Comparator

( VOC Series )


Usages


This optical comparator is a precision measuring device integrating optics, mechanics, electricity and computation into an organic whole; which is widely used in the labs, college RD, measuring rooms and workshops of related factories and plants in the sectors such as metal mould, clock and watches and electronics industries. This optical measuring device can easily and speedily check the profiles and surface shapes of various measured jobs; e.g., various parts, cutting tools, punching pieces, cams, gears, molding milling cutters, tapping tools, etc.


Parameters


IlluminationContourSurface
Magnification 10X20X50X100X10X20X50X100X
View field diameter30.615.36.1330.615.36.13
Working distance (L)73682625232965
Max.workpiece height (H)8080808080808080
Max.workpiece diameter(D)14014060551401404845


Specification


•  Screen size: 312mm with 4 film clips
•  Image: erect and un-reversed
•  Stage load capacity: 10kg
•  Net weight: 100kg
•  Object lens: 10x.20x.50x.100x. (standard 10x), reflector attached
•  Magnification accuracy: 0.08% contour, 0.12% surface
•  Illumination: 24v/150w halogen bulbs for contour and surface
•  Power supply: AC110-120v, 200-240v, single phase 50/60Hz
•  Linear scale-X. Y axis: 0.5µm resolution
•  Accuracy: (2+L/150)µm, L = length of the work piece measured ( unit: mm)
•  Repeatability: 0.003mm
•  Transmission: linear guide, fits fast moving
•  Digital readout: Metrology counter with RS-232C output


Features



• Skew

• MM/INCH conversion

• ABS/INC conversion

• Zero setting

• 1/2 calculation

• 0° 90° 270° 360° conversion

• Linear compensation

• RS-232C output
