Profile Projector

Profile Projector

Profile Projector
CategoriesProfile Projector
AlbumView larger image
BrandL&D
ModelVOE Series
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-23
Detail Information

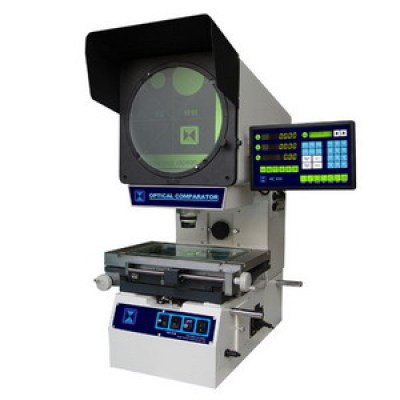

Profile Projector

( VOE Series )



Parameters


Illumination
Contour
Surface
Magnification
10X
20X
50X
100X
10X
20X
50X
100X
View field diameter
30.6
15.3
6.1
3
30.6
15.3
6.1
3
Working distance (L)
77.7
44.3
38.4
25.3
23
29
6
5
Max.workpiece height (H)
90
90
90
90
 90
90
90
90
Max.workpiece diameter(D)
200
200
60
55
170
160
48
45


Specification


•  This profile projector has an upand down the project lens to focus
•  Screen size: ¢312mm with 4 film clips
•  Travel-X.Y axis: 250mm*150mm
•   Stage size: 450mm*280mm
•   Stage load capacity: 50kg
•   Net weight: 175kg
•  Object lens:10x.20x.50x.100x. (standard 10x), reflector attached
•  Magnification accuracy: 0.08% contour, 0.12% surface
•  Illumination: 24v/150w halogen bulbs for contour and surface
•  Power supply: AC110-120V, 200-240V, single phase 50/60Hz
•  Linear scale-X. Y axis: 0.5µm resolution
•  Angle measuring: 0.01°or 1′resolution
•  Accuracy: (2+L/150)µm, of which, L = length of the work piece measured ( unit: mm)
•  Repeatability: 0.003mm
•  Transmission: linear guide, fits fast moving
•  Digital readout: DC-3000 DRO with RS-232C output


Features


•  Skew
•  MM/INCH conversion
•  ABS/INC conversion
•  Zero setting
•  1/2 calculation
•  0° 90° 270° 360° conversion
•  Linear compensation
•  RS-232C output


Standard Accessories


•  Metrology counter
•  One lens from 10x, 20x, 50x or 100x


Dimension
