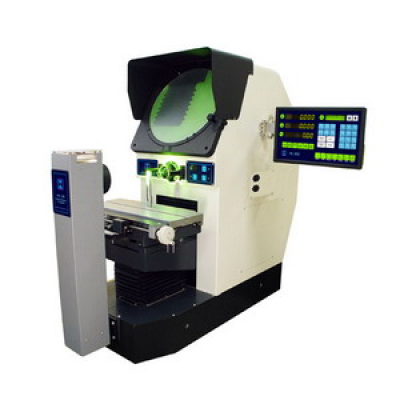

Horizontal Profile Projector

Horizontal Profile Projector

Horizontal Profile Projector
CategoriesProfile Projector
AlbumView larger image
BrandL&D
ModelHOC300
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-11-26
Detail Information

Horizontal Profile Projector

( HOC300 )



Parameter


Illumination
Contour
Surface
Magnification
10X
20X
50X
100X
View field diameter
¢30
¢15
¢6
¢3
Working distance (L)
77.7
44.3
38.4
25.3


Specification


•  Screen size: ¢300mm with 4 film clips
•  Travel-X.Z axis: 200mm*100mm
•  Travel-Y: 75mm
•  Stage size: 400mm*150mm
•  Stage load capacity: 30kg
•  Table swing range: 15°
•  Gross weight: 240kg
•  Object lens:
•  10x.20x.50x.100x. (standard 10x), reflector attached
•  Magnification accuracy: 0.08% contour, 0.12% surface
•  Transmission illumination: 24v/150w halogen bulbs for contour
•  Reflection illumination: 21v/150w halogen bulbs for surface(pairs of fiber optic lighting)
•  Power supply: AC110-120v, 200-240v, single phase 50/60Hz
•  Linear scale-X. Y axis: 0.5µm resolution
•  Angle measuring: 0.01°or 1′resolution
•  Accuracy: (3.5+L/75)µm, L = length of the work piece measured ( unit: mm)
•  Repeatability: 0.003mm
•  Transmission: linear guide, fits fast moving
•  Digital readout: Data processor with RS-232C output


Features


•  Skew
•  MM/inch conversion
•  ABS/INC conversion
•  Zero setting
•  1/2 calculation
•  0° 90° 270° 360° conversion
•  Linear compensation
•  RS-232C output
•  Geometric measurement


Dimension
