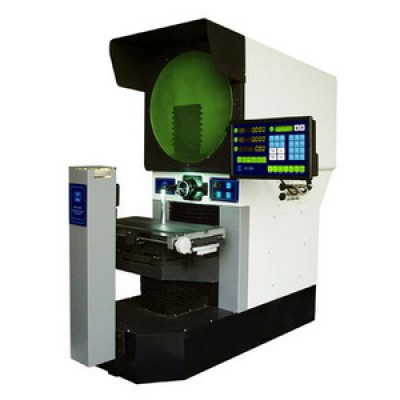

 Horizontal Optical Comparator

( HOC400 )



Parameter


Illumination               CONTOUR                  SURFACE
Magnification5X10X20X50X100X
View field diameter¢80¢40¢20¢8¢4
Working distance (L)93.7103.995.165.735.0
Max.workpiece width (W)180240240240      240
Max.workpiece diameter (D)    ¢200¢200¢200¢200    ¢100
Remarks: The values of max. workpiece width (W and diameter (D) would be the same when both of contour and surface lights are on at the same time


Specification


•  Screen size for Horizontal Optical Comparator: ¢400mm with 4 film clips
•  Travel-X.Z axis: 250mm*150mm
•  Travel-Y: 100mm
•  Stage size: 450mm*200mm
•  Stage load capacity: 30kg
•  Net weight: 240kg
•  Object lens:5x.10x.20x.50x.100x. (standard 10x), reflector attached
•  Magnification accuracy: 0.08% contour, 0.12% surface
•  Transmission illumination: 24v/150w halogen bulbs for contour
•  Reflection illumination: 21v/150w halogen bulbs for surface(pairs of fiber optic lighting)
•  Power supply: AC110-120v, 200-240v, single phase 50/60Hz
•  Linear scale-X. Y axis: 0.5µm resolution
•  Angle measuring: 0.01°or 1′resolution
•  Accuracy: (4+L/75)µm, L = length of the work piece measured ( unit: mm)
•  Repeatability: 0.003mm
•  Transmission: linear guide, fits fast moving
•  Digital readout: Metrology counter with RS-232C output


Features


•  Skew
•  MM/INCH conversion
•  ABS/INC conversion
•  Zero setting
•  1/2 calculation
•  0° 90° 270° 360° conversion
•  Linear compensation
•  RS-232C output
•  Geometric measurement


Dimension
