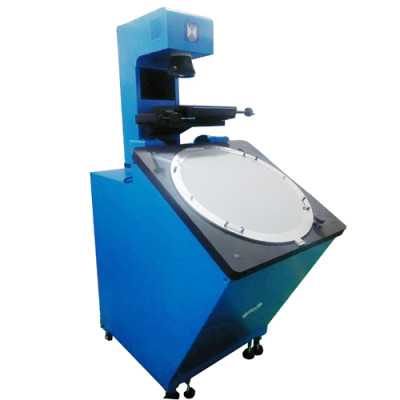

Floor-standing Profile Projector

Floor-standing Profile Projector

Floor-standing  Profile Projector
CategoriesProfile Projector
AlbumView larger image
BrandL&D
ModelVOC600
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-22
Detail Information

 600mm Large Profile Projector



Usage


VOC series large Profile Projector are precise and excellent non-contact optical measuring instrument integrate with the technology of optic, mechanic, electricity and computer. The Floor-standing model ¢600 Profile Projector is specially used to inspect the phone backlight, LCD, Gear and so on.


Features


•  Floor-standing model using overhead illumination which allows a large, conveniently positioned screen so that projected images can be easily traced or compared with a template.

•  Digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and error-free angle measurement.

•  The standard oblique surface illumination unit provides clear and bright images, allowing easy inspection of non-reflective work-pieces such as plastic parts or printed materials.

•  The optional optical edge detector eliminates human errors which may be involved in visual alignment, ensuring speedy, accurate, and consistent measurements, regardless of operator's skill.


Technical parameters


Model
VOC600-200*100
Projected image
Inverted
Metal table’s size(mm)
404*265
Glass table’s size(mm)
270*170
Stage Travel X-axis
200mm
Stage Travel Y-axis
100mm
Stage Travel Z-axis
50mm(for focus)
Resolution
0.5µm
Measuring unit
Built-in linear scales
Accuracy
(2+L/150)µm
Screen
Screen Diameter: ¢615mm with 4 film clips
Screen material: fine ground glass
Reference line: Staggered cross and crosshair
Screen rotary range: 0°~360°
Rotary angle resolution:1’ or 0.01°(switchable)
Digital Readout
Metrolog counter with RS232 output (can be used to collect the data and measure the point, line, circle, angle and distance).
Illumination
Contour illumination: 24V/150W halogen bulb
• Optical system: Zoom Telecentric system
Oblique reflected illumination: 24V/150W halogen bulb (available with 50x lens and 100x lens)
Vertical reflected illumination: 24V/150W halogen bulb
• Light source: Halogen bulb (24V, 150W)
• Optical system: Vertical illumination
Focusing
Manual focus
Power
AC100-240V, single phase 50/60Hz,Total power 650W
Cooling
Built-in cooling fans
Dimension
1200(mm)*1138(mm)*1938(mm)
G.W/N.W
590KG/360KG


Objective lens



Objective lens

 Magnification 5X10X  20X 50X100X
 View field diameter
 Ф120
 Ф60
 Ф30
 Ф12
 Ф6
 Working Distance(mm)
 242.8
 143.2
 85.5
 92
 48.5
 Max. workpiece height
 50
 50
 50
 50
 48
