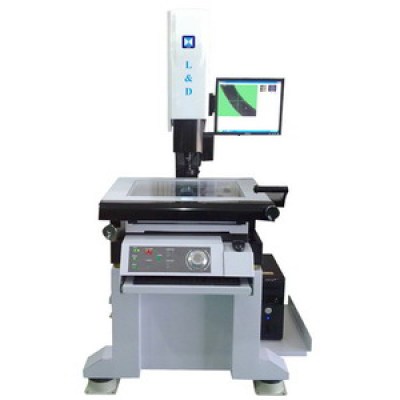

CNC Large Travel Vision Measuring System

CNC Large Travel Vision Measuring System

CNC Large Travel Vision Measuring System
CategoriesVideo Measuring System
AlbumView larger image
BrandL&D
ModelVIP-5040
FOB portShenzhen
Terms of PaymentT/T
Update Time2020-11-26
Detail Information

Middle Travel Non-contact Video Measuring Machine VIP Series

( VIP-5040 )



Features


 Granite base and Column ensure stable, accurate, and consistent measurements
 Ergonomic design, easy to operate
 Quick release knob on X and Y stage
 USA Navitar brand 0.7x-4.5x continuous zoom lens
 Japan 1/2'' high resolution color CCD Camera
 High Precision T-slot stages are available
 0.5µm high resolution linear scale


Specifications


Model No. VIP-5040
Travel-X.Y axis 500*400(mm)
Travel-Z axis 200(mm)
Feed mechanism Manual
Resolution 0.5µm
Measuring unit Built-in linear scales
X,Y-axis accuracy  (2.5+L/100)μm
Repeatability 0.003mm
Stage glass 570*470
Stage load capacity 25kg
Illumination Contour illumination: LED parallel lamp, Surface illumination: LED ring light
Video System Navitar Zoom lens 0.7X-4.5X
Japan 1/2'' color CCD camera
Dimension L*W*H 1300*1120*1860(mm)
Power 110V/220V
Gross/Net weight 1100KG/798kg
