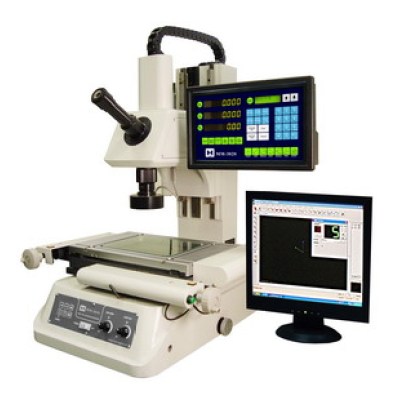

Tool-Maker Microscope

( MM Series )



Introduction


MM Series Microscope is a photoelectric measuring system of high precision and efficiency. It is mainly applied in 2D measurement, sometimes in 3D as well with eyepiece gauge. The measurements of surface roughness, height, depth, steps, etc. are made simply by relative measuring method. MM series measuring microscope is highly appreciated by manufacturers for its accurate measurement and inspection of objects, such as PCB, precision parts, ICs, magnetic heads, electronic components, etc.


Features


  MM series measuring microscopes have many functions such as data gathering/displaying, image displaying/magnifying, data input/output and so on

  Equipped with professional inspection color CCD camera and image measuring software greatly enhances image measurement performance, it make the operation of edge detection faster and more accurate.

  Eyepiece system can perform good optical view and the illumination is much clearer than Video measuring machine.

  MM series measuring microscopes can also connect to PC by RS232 interface on digital readout device. It can input and output the measured data directly.

  Body with high-rigidity, to achieve a sharp, clear field of view and stable accuracy at desired total magnification

  Eyepieces with a wide field of view to reduce eye fatigue that accompanies a long inspection time

  On both sides of the column, place the movement handles with the large-size grips for Focus and Measure

  Built in X and Y axis Zero-set switches

  Available with the Video Unit for upgrading to a video measuring system


Specifications


Model
MM-1510
MM-2010
MM-2515
MM-3020

Optical tube
Monocular tube(standard), Binocular tube
Eyepiece lens
10X
Objective
1X(optional), 3X(standard), 5X(optional)
Illumination
Reflected illumination: Telecentric illumination with adjustable aperture diaphragm, 12V/50W halogen lamp
Transmitted illumination: Koehler illumination with adjustable aperture diaphragm, 24V/20W halogen lamp
Metal Table’s Size (mm)
354 x 228
404 x 228
450*280
500*330

Glass Table’s Size (mm)
210 x 160
260 x 160
306*196
350*250

X/Y Travel (mm)
150 x 100
200 x 100
250*150
300*200

Z axis travel (mm)
150
150
200
200

X/Y/Z-axis resolution(μm)
0.5
0.5
0.5
0.5

Load
5kg
5kg
10kg
20kg

Zero switch
X and Y axes
Measuring unit
Built-in linear scales
Digital Readout
Zero-setting, Resolution switching, Skew function, data output via RS-232C
Measuring accuracy (at 20ºC)
(2+L/150)µm; L: measuring length (mm)
Power supply
100-120V/220V-240V, 50/60Hz
Weight (kg)
102
112138142
Dimensions (mm)
540 x 670 x 850
800x680x920


Standard Accessories


Video Unit
MM-V
CCD camera unit
Image sensor: 1/3” color CCD camera
Operating Software
2D measurement software
