Tool-Maker Microscope

Tool-Maker Microscope

Tool-Maker Microscope
CategoriesTool-Maker Microscope
AlbumView larger image
BrandL&D
ModelTM series
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-21
Detail Information

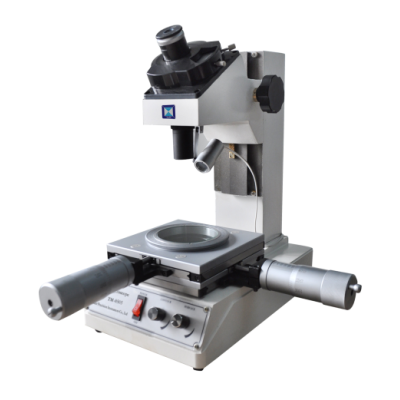

Tool-maker Microscope

( TM-0505 )



Features

  Compact universal tool-maker microscope, can be installed in workshops and other small places
  Digital micrometer facilitates easy and accurate measurement
  Enable precise angle measurement
  Overall magnification is 30X, with optional objective lens and eyepieces, the range lies between 20X-150X
  Adjustable transmitted and reflective illumination facilitates observation of the contour and surface of work pieces


Specifications


Model
TM-0505
Optical tube
Monocular type (inclined 30º)
Observation image
Erect
Eyepiece
10X(standard) , 15X
Objective lens
2X(standard), 4X, 10X
Maximum height of work piece
70mm
Focusing method
Manual
Illumination
Transmitted illumination: LED light source (3V/0.06W)
Reflective illumination: LED light source (3V/0.06W)
Precision stage
Measuring range
50*50mm
Table size
160*160mm
Max. load
5kg
Measuring unit
Mechanical micrometer(standard), Digital micrometer
Resolution
Mechanical micrometer: 0.01mm,
Digital micrometer: 0.001mm
Measuring accuracy (at 20°c)
(5+L/15)μm; L:measuring length(mm)
Power supply
110V/220V, 50/60Hz
Weight
18kg
