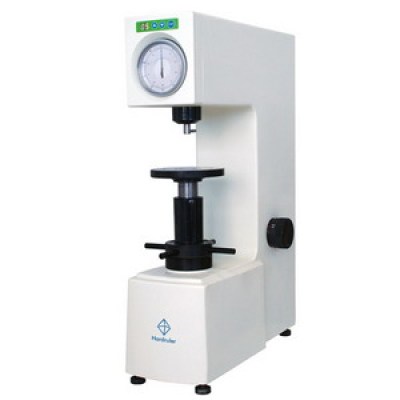

Motorized Rockwell Hardness Tester

Motorized Rockwell Hardness Tester

Motorized Rockwell Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHR-150M
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-22
Detail Information

Motorized Rockwell Hardness Tester

( HR-150M )



Usage


Model HR-150M Rockwell hardness tester is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It is widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.


Features


•  Electronic control of load duration
•  High accuracy, reliability and durability.
•  Motorized testing procedure
•  Accuracy conforms to EN-ISO 6508, ASTME-18, GB/T230.2


Specifications


Product name
Motorized Rockwell Hardness Tester
Model
HR-150M
Rockwell scales
HRA, HRB, HRC
Measuring range
20-88HRA, 20-100HRB, 20-70HRC
Resolution
0.5HR
Preload
10kgf(98.07N)
Test loads
60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Display
Dial Indicator
Loading control
Motorized
Dwell time
1-60S
Max. height of specimen
170mm
Instrument throat
135mm
Dimension (L*W*H)
460*250*640mm
Packing dimension
538*400*730
Gross/Net weight
90kg/70kg
Power supply
220V or 110V AC, 50 or 60Hz
Accuracy
Conforms to EN-ISO 6508, ASTME-18, GB/T230.2


Standard Delivery


Main unit
1pcs
Diamond Rockwell indenter
1pcs
Ball indenter 1/16”
1pcs
Hardness test block (80-88)HRA
1pcs
Hardness test block (85-95) HRB
1pcs
Hardness test block (60-70) HRC
1pcs
Hardness test block (20-30)HRC
1pcs
Large flat anvil Ø150mm
1pcs
Small flat anvil Ø60mm
1pcs
V-anvil Ø40mm
1pcs
Adjustable foot
4pcs
Accessories case
1pcs
Anti-dust cover
1pcs
Instruments certificate
1pcs
Installation & user manual
1pcs
