Digital Rockwell Hardness Tester

Digital Rockwell Hardness Tester

Digital Rockwell Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHR-150D
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-11-27
Detail Information

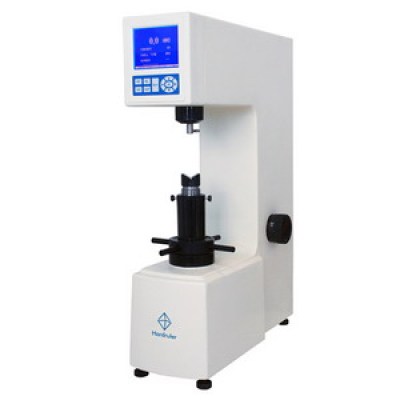

Digital Rockwell Hardness Tester

( HR-150D )



Usage


Model HR-150D digital Rockwell hardness tester is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It is widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.


Features


•  Accuracy, Reliability and durability at cheap price
•  Digital LCD reading of 12 regular Rockwell scales
•  Conversion to other hardness scales, such as HV, HB and HK
•  Integrated printer for test result and statistics
•  RS-232C interface is available


Specifications


Product name
Digital Rockwell Hardness Tester
Model
HR-150D
Rockwell scales
A, B, C, D, E, F, G, H, K, L, M, R
Display conversion to
HV, HB, HK scales
Preload
10kgf(98.07N)
Test loads
60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Loading control
Automatic
Dwell time
1-60S
Hardness indication
Digital LCD display
Resolution
0.1HR
Data output
Built-in printer and RS-232C
Max. height of specimen
175mm
Instrument throat
165mm
Dimension (L*W*H)
520 x215 x700mm
Packing dimension
630*440*960
Gross/Net weight
120kg/90kg
Power supply
220V or 110V AC, 50 or 60Hz
Accuracy
Conforms to EN-ISO 6508 , ASTME-18, GB/T230.2


Standard Delivery


Main unit
1pcs
Thermal printer
1pcs
Data-output RS-232C
1pcs
Diamond Rockwell indenter
1pcs
Ball indenter 1/16”
1pcs
Large flat anvil Ø150mm
1pcs
Small flat anvil Ø60mm
1pcs
V-anvil Ø40mm
1pcs
Hardness test block (85-100) HRB
1pcs
Hardness test block (57-70) HRC
1pcs
Hardness test block (20-33)HRC
1pcs
Adjustable foot
4pcs
Accessories case
1pcs
Anti-dust cover
1pcs
Instrument certificate
1pcs
Installation & user manual
1pcs
