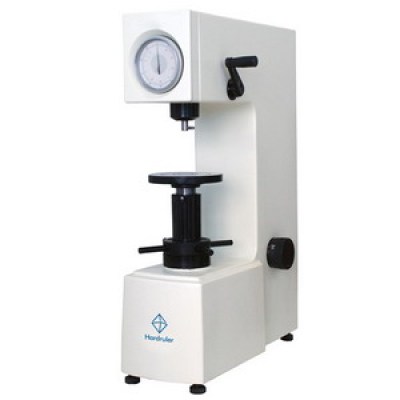

Rockwell Hardness Tester

( HR-150A )



Usage


Model HR-150A Rockwell hardness tester is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It is widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.


Features


•  Accuracy, reliability and durability at a cheap price
•  Rugged construction, will stand up to the harshest environments
•  Direct analogue reading of Rockwell scales HRA, HRB, HRC, with 0.5HR resolution
•  Mechanical test cycle without need of electricity
•  Accuracy conforms to EN-ISO 6508, ASTME-18, GB/T230.2


Specifications


Product name
Manual Rockwell Hardness Tester
Model
HR-150A
Rockwell scales
HRA, HRB, HRC
Measuring range
20-88HRA, 20-100HRB, 20-70HRC
Hardness resolution
0.5HR
Preload
10kgf(98.07N)
Test loads
60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Display
Dial indicator
Test force application
By force lever
Dwell time
1-60S
Max. height of specimen
170mm
Instrument throat
135mm
Dimension (L*W*H)
460*250*640mm
Packing dimension
538*400*730
Gross/Net weight
90kg/70kg
Accuracy
Conforms to EN-ISO 6508, ASTME-18, GB/T230.2


Standard Delivery


•  Main unit 1pcs
•  Diamond Rockwell indenter 1pcs
•  Ball indenter 1/16” 1pcs
•  Hardness test block (80-88)HRA 1pcs
•  Hardness test block (85-95) HRB 1pcs
•  Hardness test block (60-70) HRC 1pcs
•  Hardness test block (20-30)HRC 1pcs
•  Large flat anvil Ø150mm 1pcs
•  Small flat anvil Ø60mm 1pcs
•  V- anvil Ø40mm 1pcs
•  Adjustable foot 4pcs
•  Accessories case 1pcs
•  Anti-dust cover 1pcs
•  Instruments certificate 1pcs
•  Installation & user manual 1pcs
