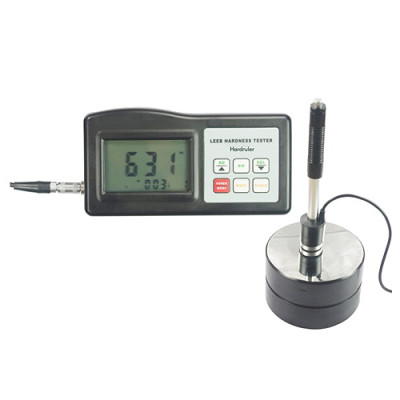

Portable Leeb Hardness Tester

Portable Leeb Hardness Tester

Portable Leeb Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelLB-100
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-11-27
Detail Information
    • Portable Leeb Hardness Tester

      ( LB-100 )




      Features


        Wide measuring range in HL and direct display of converted hardness values in HRB, HRC, HV, HB and HS
        For most metals (see table)
        Provide testing at any angle, even upside down
        High accuracy tolerance of maximum 0.8% on solid parts
        Backlight LCD display showing all functions and parameters
        Data output RS-232C
        Optional printer available
        Low battery indication
        Auto-off after three minutes



      Technica data:


      MaterialHLDHRBHRCHBHVHS
      Steel and cast steel300-90038-10020-6881-65481-95532-100
      Cold work tool steel300-840-20-67-80-898-
      Stainless steel300-80046-101-85-65585-802-
      Grey cast iron360-650--93-334--
      Nodular cast iron400-660--131-387--
      Cast aluminum alloys170-57023-84-19-164--
      Brass200-55013-95-40-173--
      Bronze300-700--60-29--
      Copper200-690--45-315--

      Name
      Portable Leeb Hardness tester
      Model
       LB-100
      Hardness scales
      HL, HRB, HRC, HV, HB, HS
      Measuring range/metallic materials
      200~900HLD
      Accuracy
      ±0.8 % (HLD=800)
      Statistics
      Average value
      Memory
      50 groups
      Output
      RS-232C
      Impact device
      D(standard type)
      Workpiece radius (convex/concave)
      Rmin=50mm(with support ring Rmin=10mm)
      Workpiece minimum weight
      2.5kg on solid support(0.1kg with couplant paste)
      Workpiece min. thickness coupled
      3mm
      Workpiece min.case hardned depth
      0.8mm
      Power
      4*AAA battery 1.5V
      Operating temperature
      0ºC-50ºC
      Humidity
      ≤90 %
      Dimension
      120 × 62 × 30 mm
      Weight
      160g


      Standard Delivery


        Main unit
        Impact device type D
        Hardness test block with HLD-value
        Cleaning brush
        Coupling paste
        Carrying case
        Instruments certificate
        Installation & user manual


      Optional Accessories


        Impact device
        Support rings for convex and concave surfaces
        RS232 or USB cable and software
        Bluetooth communication and software
