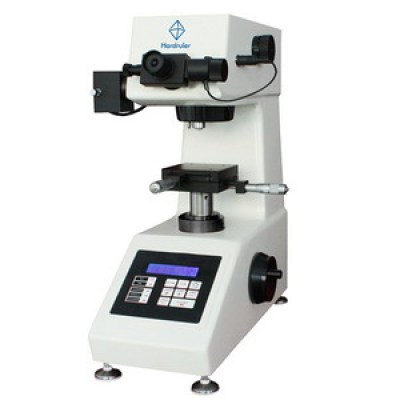

Motorized Micro-Vickers Hardness Tester

Motorized Micro-Vickers Hardness Tester

Motorized Micro-Vickers Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHVS-1000M
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-23
Detail Information

Micro-Vickers Hardness Tester

( HVS-1000/1000M )



Usage


Model HVS-1000 series Digital Micro-Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.



Typical Applications


  Steels, IC wafers, non-ferrous metals
  Thin plastic, metallic foils, plating, coating, surface layers, laminated metals
  Glass, ceramics, agate, gem
  Depth and gradient of carburized and flame hardened layers


Features


  Motorized turret (HVS-1000M)
  Fully automatic load, dwell and unloading control
  Two optical paths
  CCD Video measurement system optional


Specifications


Product name
Digital Micro-Vickers Hardness Tester
Model
HVS-1000
HVS-1000M
Vickers scales
HV0.01, V0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display
Test force, diagonals length, hardness value, dwell time
Testing load
gf
10, 25, 50, 100, 200, 300, 500, 1000
N
0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8
Testing range
HV1~HV2967
Lens & indenter switch
Manual turret
Motorized turret
Load control
Automatic (loading/dwell/unloading)
Dwell time
Adjustable 0~60s
Output data
RS-232C/bulit-in printer
Illumination
Halogen lamp light source
Magnification of microscope
Observation:10x; measurement:40x
Eyepiece magnification
10x, digital encoder built-in
XY stage
Size:100x100mm; travel:25 x25mm; resolution:0.01mm
Max. height of specimen
100mm
Instrument throat
98mm
Dimension (L*W*H)
480*310*550mm
Gross/Net weight
50kg/40kg
Power supply
220V or 110V AC, 50 or 60Hz
Accuracy
Conforms to EN-ISO 6507 , ASTM E384, GB/T4340.2


Standard Delivery


  Main unit 1pcs
  Thermal printer 1pcs
  Data-output RS-232C 1pcs
  Motorized turret (HVS-1000M) 1pcs
  Diamond Vickers indenter 1pcs
  10x objective 1pcs
  40x objective 1pcs
  10x digital eyepiece 1pcs
  XY-stage with micrometers 1pcs
  Clamping device 3pcs
  Adjustable foot 4pcs
  Level gauge 1pcs
  Hardness test blocks HV1 1pcs
  Hardness test blocks HV0.2 1pcs
  Accessories Case 1pcs
  Anti-dust cover 1pcs
  Instruments certificate 1pcs
  Installation & user manual 1pcs


Optional accessories


  Knoop indenter
  CCD system
