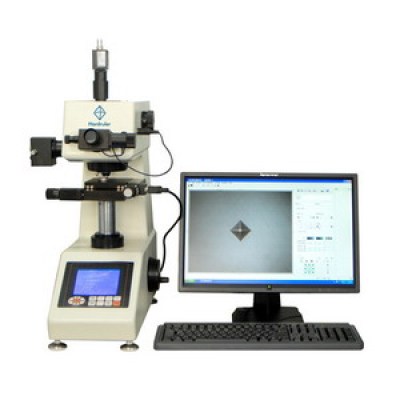

Automated Micro-Vickers Hardness Tester

Automated Micro-Vickers Hardness Tester

Automated Micro-Vickers Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHVD-1000C
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-11-25
Detail Information
  •  Automated Micro-Vickers Hardness Tester

    ( HVD-1000C )



    Usage


    Model HVD-1000C series automatic Micro-Vickers hardness tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.


    Typical Applications


    •  Steels, IC wafers, non-ferrous metals
    • Thin plastic, metallic foils, plating, coating, surface layers, laminated metals
    • Glass, ceramics, agate, gem
    • Depth and gradient of carburized and flame hardened layers


    Features


    • Motorized turret
    • Equipped with auto-platform, users can measure automatically.
    • Fully automatic load, dwell and unloading control
    • Built-in thermal printer
    • 2kg load optional
    • CCD Video measurement system as standard


    Specifications


    Product name
    Automatic Micro-Vickers Hardness Tester
    Model
    HVD-1000C
    Testing load
    gf
    10, 25, 50, 100, 200, 300, 500, 1000
    N
    0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8
    Indentation Measurement
    Digital Sensor /Software Measurement
    Testing Range
    5HV~3000HV
    Lens & Indenter Switch
    Motorized turret
    Load control
    Automatic (loading/dwell/unloading)
    Dwell Time
    Adjustable 0~60s
    Magnification of Microscope
    Observation:10x; measurement:40x
    Digital Eyepiece
    Magnification:10x
    Auto X-Y Anvil
    Size:100*100mm; travel:50*50mm; resolution:0.1µm
    Video System
    1/2’’ inch Color CCD Camera
    Measuring software
    Vickers Hardness Measuring and Driven Software
    Max. Height Of Specimen
    100mm
    Instrument Throat
    98mm
    Hardness Indication
    LCD Display, dwell time, hardness value
    Illumination
    Halogen lamp light source
    Dimension (L*W*H)
    480*305*545mm
    Gross/Net Weight
    50kg/40kg
    Power Supply
    220V or 110V AC, 50Hz or 60Hz
    Accuracy
    EN-ISO 6507 , ASTM E384, GB/T4340.2


    Standard Delivery


    • Main Unit
    • Motorized turret
    • Diamond Vickers Indenter
    • Vickers Hardness Block HV 1
    • Vickers Hardness Block HV0.2
    • Measuring software
    • Objective 10x
    • Objective 40x
    • Eyepiece 10x
    • XY Auto Anvil
    • XY-stage with micrometers
    • Clamping devices
    • Extension tube for CCD
    • Adjustable foot
    • Level gauge
    • Micro-Vickers test plates
    • Accessories case
    • Anti-dust cover
    • Installation & user manual
