Micro-Vickers Hardness Tester

Micro-Vickers Hardness Tester

Micro-Vickers Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHVT-1000
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-22
Detail Information

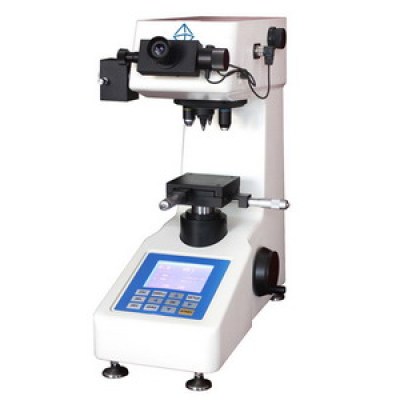

Dual indenter turret Micro-Vickers Hardness Tester

( HVT-1000 )



Usage



Model HVT-1000 series Digital Micro-Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.


Typical applications


  Steels, IC wafers, non-ferrous metals
  Thin plastic, metallic foils, plating, coating, surface layers, laminated metals
  Glass, ceramics, agate, gem
  Depth and gradient of carburized and flame hardened layers


Features


  Twin indenters
  Motorized turret
  Fully automatic load, dwell and unloading control
  Bulit-in thermal printer
  Menu operated large LCD screen
  2kg load optional
  CCD Video measurement system optional


Specifications


Product name
Digital Micro-Vickers Hardness Tester
Model
HVT-1000
Vickers scales
HV0.01, V0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display
Methods, force, diagonals length, hardness value, dwell time, etc
Testing load
gf
10, 25, 50, 100, 200, 300, 500, 1000 (2000gf optional)
N
0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8
Testing range
HV1~HV2967
Lens & indenter switch
Motorized turret
Load control
Automatic (loading/dwell/unloading)
Dwell time
Adjustable 0~60s
Output data
RS-232C/bulit-in printer
Illumination
Halogen lamp light source
Magnification of microscope
Observation:10x; measurement:20x, 40x
Eyepiece magnification
10x, digital encoder built-in
XY stage
Size:100x100mm; travel:25 x25mm; resolution:0.01mm
Max. height of specimen
90mm
Instrument throat
120mm
Dimension (L*W*H)
500*320*560mm
Gross/Net weight
50kg/40kg
Power supply
220V or 110V AC, 50 or 60Hz
Accuracy
Conforms to EN-ISO 6507 , ASTM E384, GB/T4340.2


Standard delivery


 Main unit 1pcs
 Thermal printer 1pcs
 Data-output RS-232C 1pcs
 Diamond Vickers indenter 1pcs
 Knoop indenter 1pcs
 10x objective 1pcs
 20x objective 1pcs
 40x objective 1pcs
 10x digital eyepiece 1pcs
 XY-stage with micrometers 1pcs
 Clamping device 2pcs
 Adjustable foot 4pcs
 Level gauge 1pcs
 Hardness test blocks HV1 1pcs
 Hardness test blocks HV0.2 1pcs
 Accessories case 1pcs
 Anti-dust cover 1pcs
 Instruments certificate 1pcs
 Installation & user manual 1pcs


Optional accessories


  2000gf test load
  CCD system
