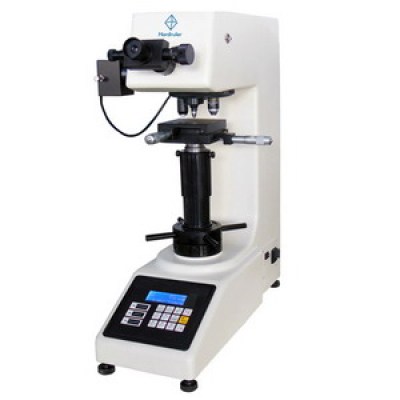

Macro-Vickers Hardness Tester

Macro-Vickers Hardness Tester

Macro-Vickers Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHV-5M
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-21
Detail Information

Economical Macro-Vickers Hardness Tester

( HV-5, HV-5M, HV-10, HV-10M )



Usage

Model HV-5 series Digital Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.


Typical Applications


  Cemented carbide, steels, non-ferrous metals
  Thin plates, metallic foils, plating
  Glass, ceramics, agate
  Material strength, effect of heat treatment, depth of carburized or decarburized layer and flame hardened layer, effect of hardening, hardness resulting from welding or deposition


Features


  Closed-loop system with load cell enhances the accuracy
  Integrated hardness calculator
  2-way switchable optical paths
  CCD Video measurement system optional


Specifications


Product name
Digital Vickers Hardness Tester
Model
HV-5
HV-5M
HV-10
HV-10M
Vickers scales
HV0.3,HV0.5,HV1.0,HV2.0,HV2.5,
HV3, HV5
HV0.3,HV0.5,HV1,HV2,HV2.5, HV3, HV5, HV10
Testing load
Kgf
0.3, 0.5, 1, 2, 2.5, 3, 5
0.3, 0.5, 1, 2, 2.5, 3, 5, 10
N
2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49
2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49, 98
Testing range
HV8~HV2900
Lens & indenter switch
Manual turret
Motorized turret
Manual turret
Motorized turret
Load control
Automatic (loading/dwell/unloading)
Dwell time
Adjustable 0~60s
Hardness indication
1HV/LCD display
Illumination
Halogen lamp light source
Objectives
Observation:20x; measurement:40x
Eyepiece
10x
XY stage
Size:100x100mm; travel:25 x25mm; resolution:0.01mm
Max. height of specimen
170mm
Instrument throat
130mm
Dimension (L*W*H)
535×230×580mm
Packing dimension
630*460*710
Gross/Net weight
50kg/40kg
Power supply
220V or 110V AC, 50 or 60Hz
Accuracy
Conforms to EN-ISO 6507 , ASTM E92, GB/T4340.2


Standard Delivery



  Main unit 1pcs
  Diamond Vickers indenter 1pcs
  Objective 20x 1pcs
  Objective 40x 1pcs
  Analogue eyepiece 10x 1pcs
  XY-stage with micrometers 1pcs
  Adjustable foot 4pcs
  Level gauge 1pcs
  Hardness test block HV5 1pcs
  Hardness test block HV0.2 1pcs
  Accessories case 1pcs
  Anti-dust cover 1pcs
  Instrument certificate 1pcs
  Installation & user manual 1pcs

Optional Accessories


  CCD system
