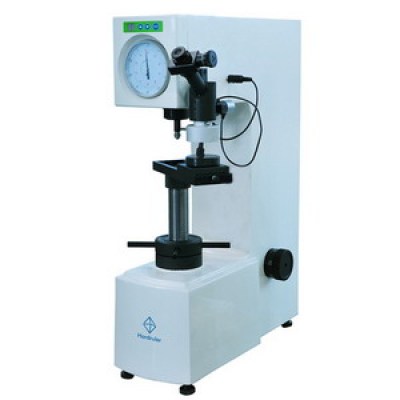

Motorized Universal Hardness Tester

Motorized Universal Hardness Tester

Motorized Universal Hardness Tester
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHBRV-187.5M
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-23
Detail Information

Motorized Universal Hardness Tester

( HBRV-187.5M )



Usage


Model HBRV-187.5M Motorized Universal Hardness Tester is suitable to determine Brinell, Rockwell and Vickers hardness of ferrous, non-ferrous metals and Hard alloy materials.


Features


•  Universal Brinell, Rockwell and Vickers hardness tester
•  Moving table between indenter and measuring microscope
•  Magnification by objective lenses 37.5x and 75x


Specifications


Product name
Motorized Universal Hardness Tester
Model
HBRV-187.5M
Hardness parameters
Rockwell, Brinell, Vickers
Optics
Eyepiece magnification 15X
Magnification of microscope
Brinell:37.5x; Vickers:75x
Rockwell test loads
60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Brinell test loads
31.25Kgf(306.5N),62.5Kgf(612.9N),187.5Kgf(1839N)
Vickers test loads
30Kgf(294.2N), 100Kgf(980.7N)
Rockwell hardness indication
Analogue display
Rockwell resolution
0.5HR
Loading control
Automatic
Dwell time
2-60S
Magnification of microscope
Brinell:37.5x; Vickers:75x
Max. height of specimen
Rockwell:170mm; Brinell, Vickers:140mm
Instrument throat
165mm
Dimension (L*W*H)
520 x215 x700mm
Packing size
630 x440 x960mm
Gross/Net weight
120kg/90kg
Power supply
220V or 110V AC, 50 or 60Hz
Accuracy
Conforms to EN-ISO 6506 ,6507,6508, ASTM E18, ASTM E10 and ASTM E92, GB/T230.2, GB/T231.2, GB/T 4340.2


Standard Delivery


Main unit
1pcs
Diamond Rockwell indenter
1pcs
Vickers diamond indenter
1pcs
Rockwell ball indenter 1/16”
1pcs
Brinell ball indenter Ø2.5mm
1pcs
Brinell ball indenter Ø5mm
1pcs
Large flat anvil Ø150
1pcs
Small flat anvil Ø60
1pcs
V-anvil Ø40
1pcs
Hardness test block (57-70) HRC
1pcs
Hardness test block (20-33) HRC
1pcs
Hardness test block (85-100)HRB
1pcs
Hardness test block HV30
1pcs
Hardness test block HBW2.5/187.5
1pcs
15x analogue eyepiece
1pcs
2.5x Brinell objective
1pcs
5x Vickers objective
1pcs
Adjustable foot
4pcs
Accessories case
1pcs
Anti-dust cover
1pcs
Instruments certificate
1pcs
Installation & user manual
1pcs
