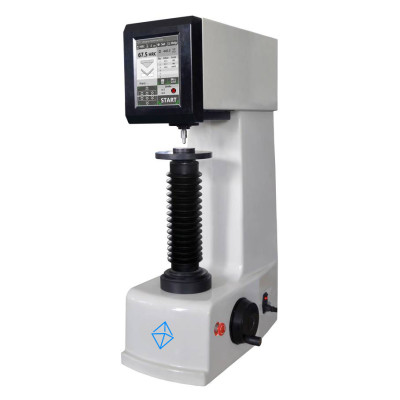

Automatic Rockwell hardness tester HRD-150C

Automatic Rockwell hardness tester HRD-150C

Automatic Rockwell hardness tester HRD-150C
CategoriesHardness Tester
AlbumView larger image
BrandL&D
ModelHRD-150C
FOB portShenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-21
Detail Information

Main Function:

HRD-150C Automatic Rockwell hardness tester with a good aesthetic aspect, complete functions, easy operation, intuitive display and good reliability, is a high-tech product combining the mechanic and electric features, which is suitable for the Rockwell and superficial Rockwell hardness test.

1.    Support for all the Rockwell and superficial Rockwell scales;

2.    Support for conversion scales of different kinds of hardness;

3.    With arc correction function;

4.    Touch screen display and operation, dynamically display the working state of the lifting screw and the indenter;

5.    Press operation for the test table, fast rising or dropping;

6.    One key to complete the rising of the specimen, loading dwell and unloading of the indenter, displaying of the hardness value, homing of the test table;

7.    With data storage function, automatic calculation of the maximum, minimum, average of the hardness value, the test results can be printed for output, and with a RS232 interface users can connect it to the computer for output.



Application range:

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.



Technical Specification:



Model

HRD-150C

Initial Test Force

3kgf (29.42N), 10kgf (98.07N)

Total Test Force

15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),

60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter

Diamond Rockwell Indenter,

 ф1.588mmBall Indenter

Loading Method

Automatic (Loading/Dwell/Unloading)

Operation

Automatic Rising and Homing,

 One Key to Complete

Hardness Reading

Touch Screen

Test Scale

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Conversion Scale

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW

Data Output

Built-in PrinterRS232 Interface

Hardness Resolution

0.1HR

Dwell Time

0~99s

Max. Height of Specimen

310mm

Throat

150mm

Power Supply

AC220V50Hz

Execute Standard

ISO 6508ASTM E18JIS Z2245GB/T 230.2

Dimension

535×330×890mm

Packing Dimension: 820×460×1170mm

Weight

Net Weight: 80kgGross Weight: 100kg



Packing List:



Name

Qty

Name

Qty

Instrument Main Body

1 set

Diamond Rockwell Indenter

1 pc

ф1.588mmBall Indenter

1 pc

Middle Plane Test Table

1 pc

Large Plane Test Table

1 pc

V-shaped Test Table

1 pc

Inner Hexagon Spanner

1 pc

Spanner

1 pc

Hardness Block 60~70 HRC

1 pc

Hardness Block 20~30 HRC

1 pc

Hardness Block 80~100 HRB

1 pc

Hardness Block 70~85 HR30T

1 pc

Hardness Block 65~80 HR30N

1 pc

Fuse 2A

2 pcs

Power Cable

1 pc

Anti-dust Cover

1 pc

Usage Instruction Manual

1 copy
