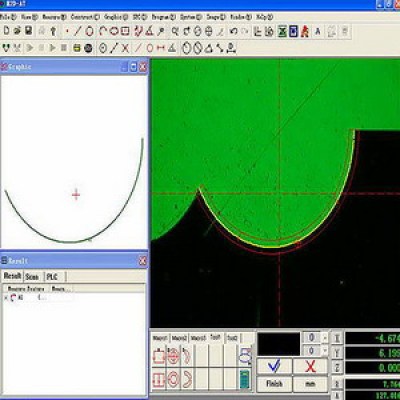

Manual 2D Metrology Measuring Software

Manual 2D Metrology Measuring Software

Manual 2D Metrology Measuring Software
CategoriesVideo Measuring System
AlbumView larger image
BrandL&D
Model2D Manual Measuring Software
FOB portShenzhen
Terms of PaymentT/T
Update Time2020-11-26
Detail Information

Manual Type Metrology 2D Measurement Software





Features



•  This measuring software point, line, Arc, Circle, Distance, and Angle measuring ability

•  Feature construction capabilities.

•  2D manual type measuring software btain essential construction results by selecting from the list of previously measured features, complete with graphics.

•  Part programming allows creation, editing, and running of programs in measurement sequence

•  Skew function for part alignment correction

•  Data and graphic can be imported into Word, Excel and AUTOCAD for editing

•  MACRO functions for batch measurements

•  The images can be saved as .bmp format

•  Four ways of edge detecting help operators capture the precise measurement data more conveniently

•  Accommodate English, Chinese

•  640 x 480 pixels image size and S-video signal input.

• 3D functiion is optional



Computer Configuration



•  Hardware:

   Pentium 4 CPU, 1.7G;

   At least 128MB RAM

   To provide a serial port, a USB port and PCI slot

   Best screen resolution 1024 * 768

   24 bits or 32bits color quality

•  Supporting application software: AutoCAD, Excel and Word

•  O.S: Windows 2000 , Windows XP or Wondows 7

•  CNC RationalDMIS

•  One-click edge software
