3 axis Digital Readout System

3 axis Digital Readout System

3 axis Digital Readout System
CategoriesDigital readout system
AlbumView larger image
BrandL&D
ModelLD 300
FOB portshenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-11-29
Detail Information

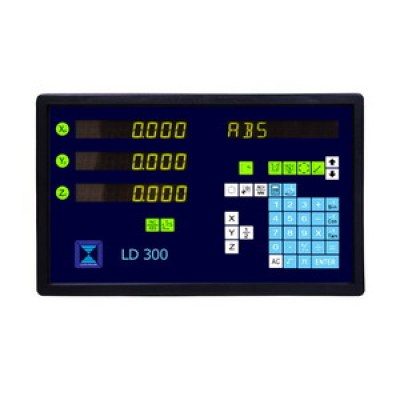

Multi-functional Digital Readout

( LD300 )



Introduction



LD series multi-function digital readout can be installed on all kinds of lathe machine, drilling machine, milling machine, Video measuring system, Tool-presetter and so on, which can supply the positioning and metrology functions together with our linear scales. We have digital readout system for 2 axis, 3 axis, 4 axis and EDM.



Function



•  Plastic body for DRO

•  999 sets of SDM coordinate

•  Zero setting

•  1/2 calculation, locating work piece center

•  mm/inch conversion

•  INC/ABS conversion

•  Resolution selection:

   0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01, 0.02, 0.05

•  Diameter/Radius selection

•  DIR: Setting the coordinate direction

•  Shrink function

•  Math.Calculating

•  Multiple machining functions:

    (1)  Bolt Circle machining

    (2)  R-angle

    (3)  Divide holes on an oblique line

    (4)  Machining on an oblique line

•  Setting and recalling a datum for machining

•  Error compensation: linear compensation

•  Instant power failure memory

•  Power consumption: AC90V-245V



Specification



•   LD200 two-axis digital readout

•   LD300 three- axis digital readouts

•   LD400  four-axis digital readout

•   LD300E appropriate for EDM machine only

•   Voltage: AC90V-240V

•   Dimension: 295mm*185mm*45mm

•   Weight: 2KG

•   Power: less than 15W

•   Linear scale's signal: TTL square wave, RS422 end different wave, Frequency<2Mhz, Current>1mA



Dimension
