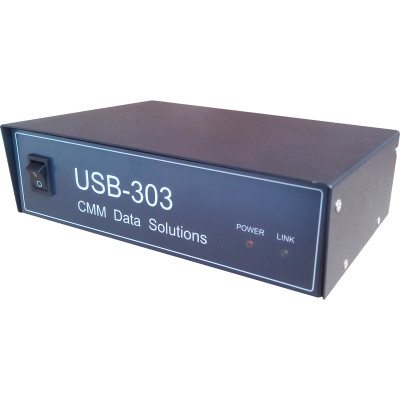

USB Encoder Interface ( USB-303 )

USB Encoder Interface ( USB-303 )

USB Encoder Interface ( USB-303 )
CategoriesDigital readout system
AlbumView larger image
BrandL&D
ModelUSB-303
FOB portshenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-11-26
Detail Information



USB Encoder Interface

( USB-303 )



Usage



USB Encoder Interface is a new type of device for scale data reading and transmission, which can connect three pieces of linear scales and one touch probe. When the touch probe is triggered or RI of linear scale is found, the device will latch the three-axis data. It is an excellent digital solution for Coordinate Measuring Machine. With the Interface functions, Developer can develop their measuring software based on Windows as well.



Character



• Plug and play



• Independent 3-axis 24-bit reversible counters



• With external trigger, three-axes counters will be latched simultaneous, the latch delay is less than 20ns



• 1.0MHZPC-ATfour - phase input



• A, B phase signal of each axis support single-ended input or differential-ended input



• The computation direction (+or-) is adjustable



• Polarity of RI, A and B phase signal can be chosen when search RI of linear scales



• Fourth-order digital filtering enhance the anti-jamming capability



• SDK is available Specification: Signal TTL or RS422 Resolution (µm) 0.10.20.51510 Dimension (mm) 186*135*58 Weight (kg) 1.3 Operating System Windows XP, Windows 7 and 10 Power supply 110V/220V
