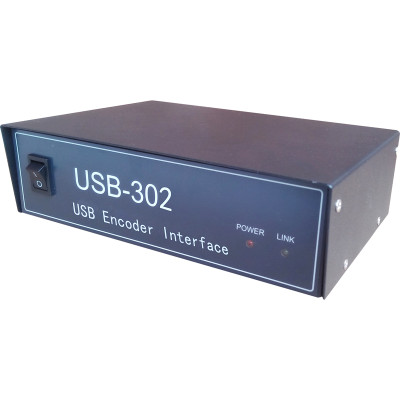

USB Encoder Interface ( USB-302 )

USB Encoder Interface ( USB-302 )

USB Encoder Interface ( USB-302 )
CategoriesDigital readout system
AlbumView larger image
BrandL&D
ModelUSB-302
FOB portshenzhen
Terms of PaymentWestern Union, T/T, Paypal
Update Time2020-09-22
Detail Information

USB Encoder Interface

USB-302





Character



•  Plug and play

•  Supply the users with the interface functions for the secondary development

•  Supply power by an external power, operate stably

•  Isolated 3-axis linear encoder interface, 24-bit reversible counter.

•  A set of external signal trigger can lock the value of any 1-axis or 3-axis simultaneous

•  The delay of external signal trigger which can lock the value is less than 20us

•  The computation direction (+or-)is adjustable .

•  The polarity of RI signalA and B signal can be chosen when searching RI point.

•  The digital filter can enhance the anti-jamming capability



Applications



•  Manual video measuring machine (2D VMM)

•  Movement control

•  Position monitoring

•  X and Y working table monitor

•  Length Measuring Machine



Specification



•  Power supply:   5V

•  Dimension:   152*116*55(mm)

•  Signal:    A, B. RI single signal ended input, orthogonality TLL.

•  Operating System:   Windows, Windows 7 and Windows 10
