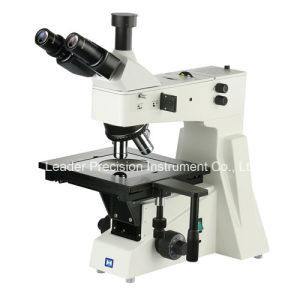

Large stage Upright Metallurgical Microscope with bright and dark field
Product Details:
Place of Origin: | china |
Brand Name: | L&D |
Certification: | CE ISO SGS |
Model Number: | LM-308 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | negotiation |
Packaging Details: | Standard exporting package |
Delivery Time: | 8 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, MoneyGram |
Supply Ability: | 50, 000PCS/Year |
Detail Information |
|||
Magnification: | 50X-2000X | Type: | Metallographic |
---|---|---|---|
Principle Of Optics: | Kohler Illumination | Mechanical Stage Travel 50mm*50mm: | 110V-220V |
Eyepiece: | Wf10X/22 | Specification: | SGS |
Origin: | Dongguan, China | HS Code: | 90118000 |
Transport Package: | Standard Exporting Package | ||
High Light: | 80x Upright Microscope,50mm monocular light microscope,monocular compound light microscope |
Product Description
Large stage Upright Metallurgical Microscope with bright and dark field
University Training Upright Bright & Dark Field Metallurgical Microscope For Industry (LM-308)
Usage
Upright bright & dark field Metallurgical Microscope LM-308 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory and industry area.
Feature
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
3) For bright and dark field observation
4) For Differential Interference contrast observation, DIC observation
Standard delivery
Technical specification
Usage
Upright bright & dark field Metallurgical Microscope LM-308 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory and industry area.
Feature
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
3) For bright and dark field observation
4) For Differential Interference contrast observation, DIC observation
Standard delivery
- Main unit: 1pcs
- 5x, 10x, 20x, 50x, 80x bright & dark field objective lens: 1pc each
- 12V/50W Osram halogen bulb: 1pcs
- Green, blue and yellow filter: 1pcs each
- Polarizer and analyzer: 1pcs
- Anti-dust cover: 1pcs
- 40x, 60x, 100x bright & dark field objective
- DIC observation unit
- 0.5x, 1x, C-mount camera adapter
- 5M Pixel digital CCD camera
- Analysis software
- Examine software
Technical specification
Eyepiece | WF10X/20 |
Objective lens | 5x, 10x, 20x, 50x, 80x |
Mechanical movable stage | Size: 280*270mm Travel: 204mm*204mm |
Interpupillary distance | 53mm-75mm |
Binocular tube | Inclined 30º. |
Diopter adjustment | ±5 diopter |
Illumination | 12V/50W halogen bulb |
Power supply | 110V/220V |
