• 0.001mm Resolution Glass Scale Linear Encoder For Lather, Grinder And Milling Machine
0.001mm Resolution Glass Scale Linear Encoder For Lather, Grinder And Milling Machine

0.001mm Resolution Glass Scale Linear Encoder For Lather, Grinder And Milling Machine

Product Details:

Place of Origin: CHINA
Brand Name: L&D
Certification: CE
Model Number: LE0400-10A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Standard Exporting Package
Delivery Time: 6 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50, 000PCS/Year
Get Best Price Contact Now

Detail Information

Resolution: 0.005mm (Standard); 0.001mm (Optional) Effective Range(Er): 2-128"(50mm-3200mm)
Output Signal: 5V, TTL(Standard); RS422(Optional) Output Wave Form: Two 90° Phase-Shifted Sinusoidal Signals
High Accuracy: (5+L/200))µm Scale Grating Pitch: 20µm
Scale Reference Point Pitch: 50mm Operating Temperature: 0 Degree To 40 Degree
Origin: Guangdong HS Code: 9031499090
Port: Shenzhen, China
High Light:

0.001mm Glass Scale Linear Encoders

,

0.001mm Glass Scale Linear Encoder

,

0.001mm resolution Glass Scale Linear Encoder

Product Description

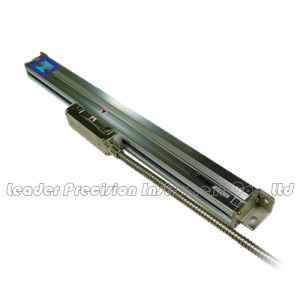

0.001mm Resolution Glass Scale Linear Encoder For Lather, Grinder And Milling Machine



Usage
The linear encoder is used to accurately detect and display the displacement of machine tools or measuring equipment together with the digital readout, which is installed on the milling machine, lathe machine, drilling machine and so on.

Features & Advantage
1) High accuracy optical glass
2) Scale reference points at a 50mm pitch to determine datum point for machining
3) Using 5 sets of bearing, assures excellent repeatability, positioning, good sliding and durability
4) Special process of aluminum alloy for water/oil proof and anti-dust
5) Suitable for milling, drilling and grinding machines, lathers, XY-tables, etc
6) Enhanced vibration resistance
7) Top quality rubber lips to avoid contamination
8) Easy installation and maintenance

Technical data
1) Resolution: 0.005mm (standard); 0.001mm (optional)
2) Effective range(ER): 2-128"(50mm-3200mm)
3) Output signal: 5V, TTL (standard); RS422(optional)
4) Output wave form: Two 90° Phase-shifted sinusoidal signals
5) High accuracy: ± (5+L/200)µm; L = Effective range (mm)
6) Max. Response Speed: 72M/min
7) Scale grating pitch: 20μm
8) Scale reference point pitch: 50mm
9) Operating temperature: 0 degree to 40 degree
10) Extension cable:
If the travel of the linear encoder is from 50mm to 900mm, the cable is 2m long
If the travel of the linear encoder is from 1000mm to 1500mm, the cable is 5m long
If the travel of the linear encoder is from 1600mm to 3000mm, the cable is 10m long



Order model & range of standard type linear scale

ResER 50mm 100mm 150mm 200m 250mm
0.005mm LE0050-50A LE0100-50A LE0150-50A LE0200-50A LE0250-50A
0.001mm LE0050-10A LE0100-10A LE0150-10A LE0200-10A LE0250-10A
ResER 300mm 350mm 400mm 450mm 500mm
0.005mm LE0300-50A LE0350-50A LE0400-50A LE0450-50A LE0500-50A
0.001mm LE0300-10A LE0350-10A LE0400-10A LE0450-10A LE0500-10A
ResER 600mm 700mm 800mm 900mm 1000mm
0.005mm LE0600-50A LE0700-50A LE0800-50A LE0900-50A LE1000-50A
0.001mm LE0600-10A LE0700-10A LE0800-10A LE0900-10A LE1000-10A
ResER 1100mm 1200mm 1300mm 1400mm 1500mm
0.005 mm LE1100-50A LE1200-50A LE1300-50A LE1400-50A LE1500-50A
0.001mm LE1100-10A LE1200-10A LE1300-10A LE1400-10A LE1500-10A
ResER 1600mm 1700mm 1800mm 1900mm 2000mm
0.005mm LE1600-50A LE1700-50A LE1800-50A LE1900-50A LE2000-50A
0.001mm LE1600-10A LE1700-10A LE1800-10A LE1900-10A LE2000-10A
ResER 2100mm 22000mm 2300mm 2400mm 2500mm
0.005mm LE2100-50A LE2200-50A LE2300-10A LE2400-50A LE2500-50A
0.001mm LE2100-10A LE2200-10A LE2300-10A LE2400-10A LE2500-10A
ResER 2600mm 2700mm 2800mm 2900mm 3000mm
0.005mm LE2600-50A LE2700-50A LE2800-50A LE2900-50A LE3000-50A

0.001mm

LE2600-10A LE2700-10A LE2800-10A LE2900-10A LE3000-10A



Installing graph

0.001mm Resolution Glass Scale Linear Encoder For Lather, Grinder And Milling Machine 0
