1 Micron Large Travel 50X Wafer Inspection Microscope
Product Details:
| Place of Origin: | china |
| Brand Name: | MICRO ACCURACY |
| Certification: | CE ISO SGS |
| Model Number: | SPC500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Travel-X.Y Axis: | 500*400(mm) | Travel-Z Axis: | 200mm |
|---|---|---|---|
| Z-Axis Working Range: | 108mm | XY Feed Mechanism: | Manual |
| Z Feed Mechanism: | CNC | Resolution: | 1 Micron |
| X,Y-Axis Accuracy(µm): | 2.5+L/200 Um, L=measuring Length (mm) | Repeatability: | 0.003mm |
| Origin: | Dongguan | HS Code: | 9031809090 |
| Port: | Shenzhen, China | ||
| High Light: | 50X Wafer Inspection Microscope,Large Travel Wafer Inspection Microscope,1 Micron Tool Maker Microscope |
||
Product Description
1 Micron Large Travel 50X Wafer Inspection Microscope

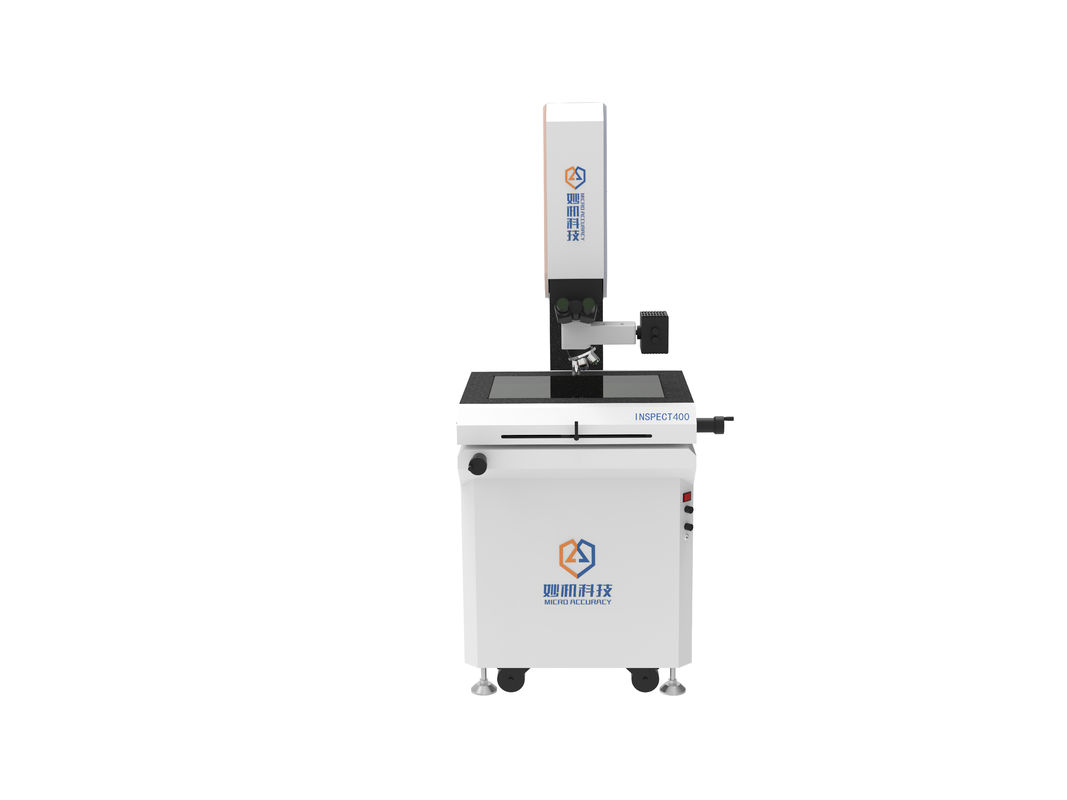

Wafer Inspecting Microscope Inspect500
Usage
INSPECT series measuring metallurgical microscope are widely used in semiconductor packages, solder pads, loop height, FPD panels (LCM), wafer level CSPS and so on.
Features & Advantages of Wafer Inspecting microscope
■ High-precision marble base, table and column to ensure high stability and rigidity
■ Marble table design, with precision V-shaped cross rail, ensure long-term use without deform, effectively guarantee high mechanical precision
■ High-quality optical system and high-resolution CCD ensure sharp image edges
■ Three-ring and eight-zone LED ring surface cold light source and contour light source, avoid the deformation of precision parts caused by the heat from light
■ Optional Nikon tilting trinocular tube + quintuple nosepiece
■ Independent research and development of image measuring software, powerful and easy to operate
Technical data
| Model | INSPECT300 | INSPECT400 | INSPECT500 | ||||
| X,Y axis travel(mm) | 300*200 | 400*300 | 500*400 | ||||
| Stage glass size(mm) | 357*257 | 457*357 | 557*457 | ||||
| Z axis travel(mm) | 100 | ||||||
| X,Y,Z axis resolution (μm) | 1 | ||||||
| Length unit | Linear scale | ||||||
| Measuring accuracy (μm) | 2.5+L/150 L=measuring length (mm) | ||||||
| Operation mode(X, Y) | Manual | ||||||
| Operation mode(Z) | CNC | ||||||
| Image system | High resolution CCD camera | ||||||
| Quintuple nosepiece | 5X | 10X | 20X | 50X | |||
| Eyepiece | WF10X | ||||||
| Measuring software | 2D measuring software | ||||||
| Illumination | Transmitted | Epi-illumination system | |||||
| Contour | LED parallel contour light | ||||||
| Power supply | AC100~240V 50/60Hz | ||||||
