50x Measuring Metallurgical Microscope For Wafer Size Inspect
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MICRO ACCURACY |
| Certification: | CE |
| Model Number: | INSPECT300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotation |
| Packaging Details: | Standard exporting package |
|
Detail Information |
|||
| Eyepiece: | 10x | Lens: | 5x, 10x, 20x 50x |
|---|---|---|---|
| Accuracy: | 2.5+L/200 | Resolution: | 0.5μm |
| Nosepiece: | Quintuple | ||
| High Light: | 50x Measuring Metallurgical Microscope,INSPECT300 Metallurgical Microscope,10x portable metallurgical microscope |
||
Product Description

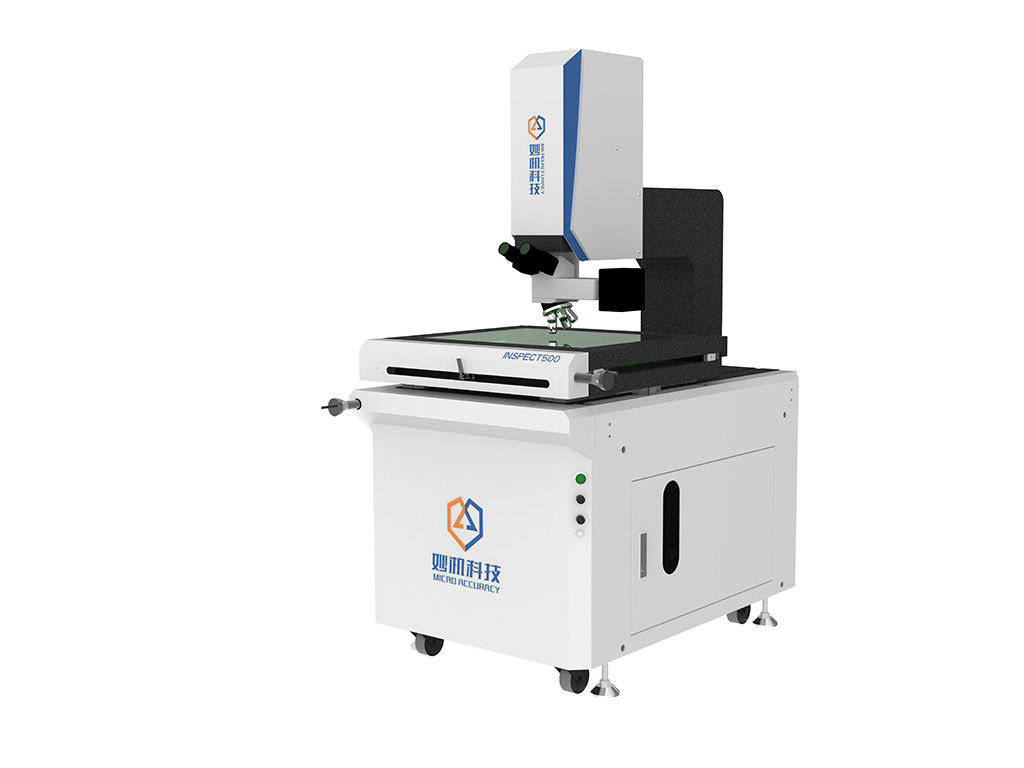

50x Measuring Metallurgical Microscope For Wafer Size Inspect
Usage
INSPECT series measuring metallurgical microscope are widely used in semiconductor packages, solder pads, loop height, FPD panels (LCM), wafer level CSPS and so on.
Features
■ High-precision marble base, table and column to ensure high stability and rigidity
■ Marble table design, with precision V-shaped cross rail, ensure long-term use without deform, effectively guarantee high mechanical precision
■ High-quality optical system and high-resolution CCD ensure sharp image edges
■ Three-ring and eight-zone LED ring surface cold light source and contour light source, avoid the deformation of precision parts caused by the heat from light
■ Optional Nikon tilting trinocular tube + quintuple nosepiece
■ Independent research and development of image measuring software, powerful and easy to operate
Technical data
| Model | INSPECT300 | INSPECT400 | INSPECT500 | ||||
| X,Y axis travel(mm) | 300*200 | 400*300 | 500*400 | ||||
| Stage glass size(mm) | 357*257 | 457*357 | 557*457 | ||||
| Z axis travel(mm) | 100 | ||||||
| X,Y,Z axis resolution (μm) | 0.5 | ||||||
| Length unit | Linear scale | ||||||
| Measuring accuracy (μm) | 2.5+L/200 L=measuring length (mm) | ||||||
| Operation mode(X, Y) | Manual | ||||||
| Operation mode(Z) | CNC | ||||||
| Camera | High resolution CCD camera | ||||||
| Quintuple nosepiece | 5X | 10X | 20X | 50X | |||
| Eyepiece | WF10X | ||||||
| Measuring software | 2D measuring software | ||||||
| Illumination | Transmitted | Epi-illumination system | |||||
| Contour | LED parallel contour light | ||||||
| Power supply | AC100~240V 50/60Hz | ||||||
