Automated CNC Video & Thickness measuring system APC500P
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Micro Accuracy |
| Certification: | CE |
| Model Number: | APC500P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Vacuum Free Fumigation Plywood Export Package |
| Delivery Time: | 10 DAYS |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500PCS/Year |
|
Detail Information |
|||
| Name: | 3D Vision Measuring Machine | XYZ Travel: | 500mm*400mm*200mm |
|---|---|---|---|
| Z Axis Working Range: | 92mm | Resolution: | 1μm |
| Measuring Accuracy: | (2.5+L/200)μm | Repeatability: | 2μm |
| Stage Load Capacity: | 20kg | ||
| High Light: | 1μm CNC Video Measuring System,1 micron CNC Video Measuring System,20kg visual measurement system |
||
Product Description

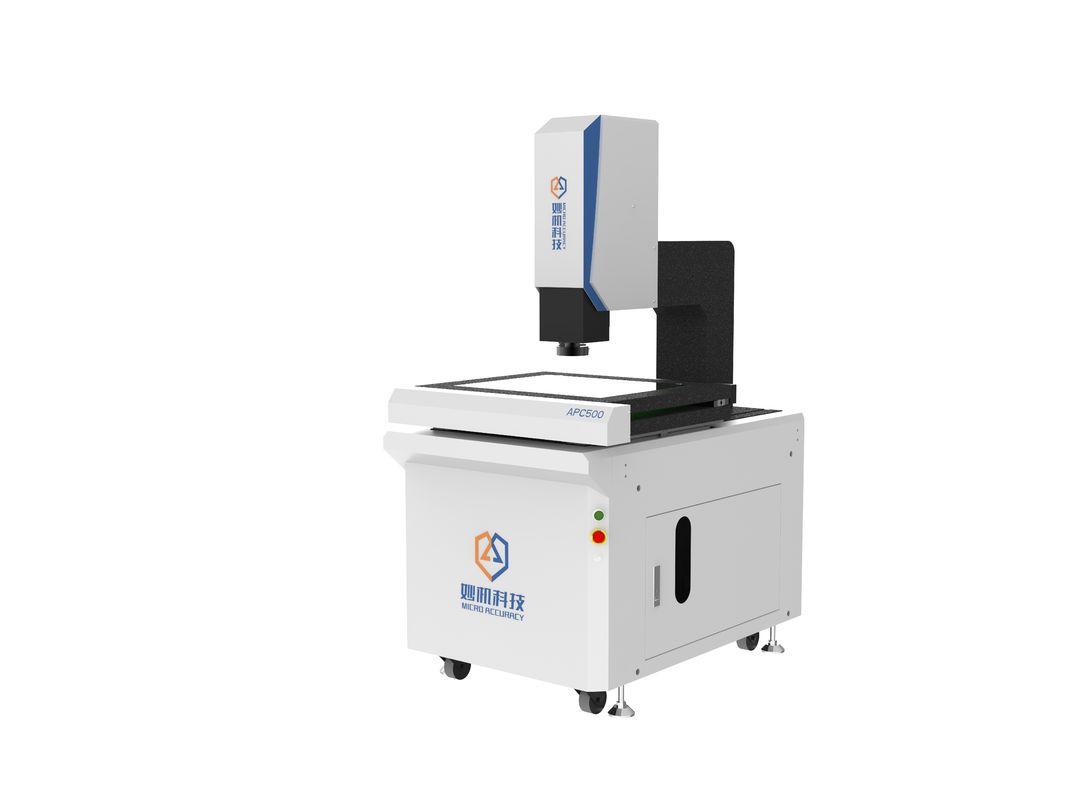

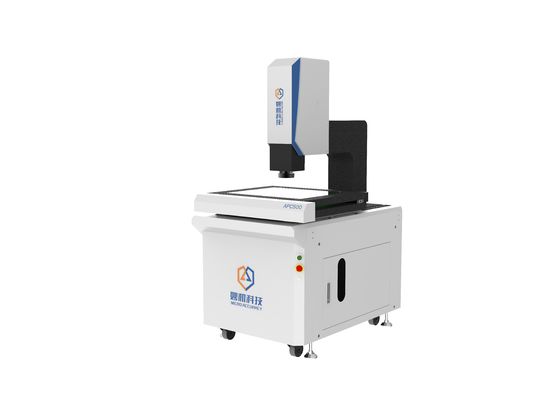

Automated CNC Video & Thickness measuring system APC500P
Introduction
Automated Precision Checking APC series are automated type non-contact optical measurement device, it is with beautiful and generous structure. Combined with our CNC metrology software, the inspect device can achieve batch measurement with high efficiency.
Features
• X,Y and Z axis of CNC measuring instrument are controlled by Panasonic servo motor, with high positioning accuracy and smooth movement
• Joystick and mouse operation, easy to use
• High-hardness, high-precision and non-deformable granite base and upright columns are stable, durable and elegant
• Programmable LED cold lights adopted for surface lamps can carry out surface measurement for various complicated work-pieces, with higher measurement accuracy
• Standard with automatic software can measure the complex work-pieces with high efficiency
• Fast Auto Focus, user can choose auto zoom as option according to the needs
Specifications
|
Model
|
APC300
|
APC400
|
APC500
|
|||
|
Stage Size (mm)
|
506*356
|
606*456
|
756*656
|
|||
|
Glass Size (mm)
|
330*230
|
430*330
|
530*430
|
|||
|
Travel (mm)
|
X axis
|
300
|
400
|
500
|
||
|
Y axis
|
200
|
300
|
400
|
|||
|
Z axis
|
200
|
200
|
200
|
|||
|
Driving System
|
CNC(Servo Motor Control)
|
|||||
|
Load(KG)
|
20
|
|||||
|
Speed
|
280 mm/s
|
|||||
|
Resolution of X/Y/Z-axis
|
0.001 mm (1μm)
|
|||||
|
Positioning Accuracy
|
0.002 mm (2 μm)
|
|||||
|
Accuracy
|
(2.5 + L/200 )μm L=Measuring lenght(mm)
|
|||||
|
Software
|
LeaderView Automated Metrology softwae
|
|||||
|
Video System
|
• CCD Camera: High resolution CCD camera
• Zoom Lens: 0.7X-4.5X |
|||||
|
Illumination
|
Counter illumination: programmable light source Reflective illumination: programmable LED ring light
|
|||||
|
Weight (KG)
|
400
|
460
|
560
|
|||
|
Power Supply
|
110V-120V/220V-240V AV, 50/60 Hz
|
|||||
Optional
• Auto zoom lens is available
• Contact proble Renishaw MCP/TP6 for measuring the flatness, height, depth is available
• Japan Keyence laser is available
• USA RationalVue software is available
