Binocular Polarizing Microscope LP-202 for observe and research the matter which have doube refraction features
Product Details:
| Place of Origin: | china |
| Brand Name: | L&D |
| Certification: | CE ISO SGS |
| Model Number: | LP-202 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Exporting Packing |
| Delivery Time: | 6 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Magnification: | 40X-600X | Type: | Biological |
|---|---|---|---|
| Principle Of Optics: | Polarizing Microscope | HS Code: | 9011200000 |
| Port: | Shenzhen, China | ||
| High Light: | edu science microscope 1200x,4x 10x 40x 100x microscope,5 diopter polarised light microscopy |
||
Product Description

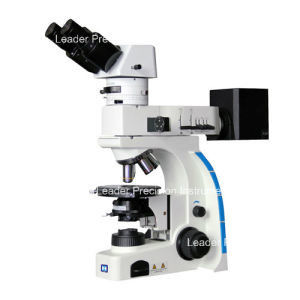

Binocular Polarizing Microscope LP-202 for observe and research the matter which have doube refraction features
LP-202 transmitted polarizing microscope is for observe and research the matter which have doube refraction features with polarizing light, user can make single polarizing observation, orthogonal observation, conoscope observation.
LP-202 transmitted polarizing microscope is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal.
LP-202 polariziing microscope is the ideal instrument for scientific research and universities teaching demo
Standard delivery
Main unit: 1pcs4
4x, 10x, 40x, 60x lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Anti-dust cover: 1pcs
Option accessory
2x, 20x, 100x(oil) plan achromatic objective
Reflective illumination (Order no: LPS-202)
Specification
| Eyepiece | WF10X/20 |
| Objective lens | 4x, 10x, 40x, 60x |
| Rotary stage | Diameter: ¢ 142 |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 30º |
| Diopter adjustment | ±5 diopter |
| Transmitted Illumination | 6V/20W halogen bulb |
| Surface illumination(optional) | 12V/50W halogen bulb |
| Power supply | 110V/220V |
