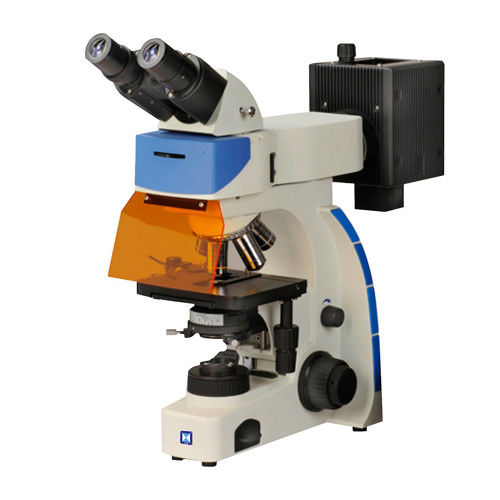

Binocular Upright Fluorescence Microscope LF-202
Product Details:
| Place of Origin: | china |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | LF-202 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Exporting Packing |
| Delivery Time: | 6 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Magnification: | 40x, 100x, 400x 1000x | Type: | Binocular |
|---|---|---|---|
| Eyepiece: | Wf10X/20 | Objective Lens: | 4X, 10X, 40X, 100X(Oil) |
| Movable Stage Size: | 156*138mm | Movable Stage Travel: | 76*54mm |
| High Light: | 4x upright confocal microscope,54mm Binocular Stereoscopic Microscope,stereoscopic dissecting microscope |
||
Product Description
Binocular Upright Fluorescence Microscope LF-202
Usage
Binocular Fluorescence Microscope LF-202 is a sort of ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue, This fluorescence microscope can be applied in the fluorescence microscopy, such as biological pharmacy, medicine checking and measure, disease prevent and so on
Standard delivery
Main unit: 1pcs
4x, 10x, 40x, 100x(oil) plan achromatic objective lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Blue filter: 1pcs
Anti-dust cover: 1pcs
Optional Accessory
2x, 20x, 60x plan achromatic objective lens
Technical data
| Eyepiece | WF10X/20 |
| Objective lens | 4x, 10x, 40x, 100x(oil) |
| Mechanical movable stage | Size: 156*138mm Travel: 76*54mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 30º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 6V/20W halogen bulb |
| Fluorescence unit | Chroma filter system UV, V, B, G |
| Power supply | 110V/220V |
