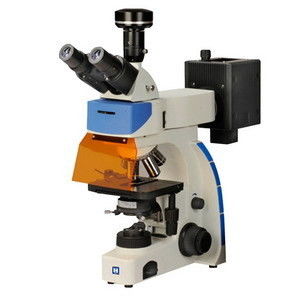

Digital Trinocular Fluorescence Microscope LF-302
Product Details:
| Place of Origin: | china |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | LF-302 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Exporting Packing |
| Delivery Time: | 6 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Magnification: | 40-1000X | Type: | Digital Telescope |
|---|---|---|---|
| Name: | Fluorescence Microscope | Eyepiece: | Wf10X/20 |
| Objective Lens: | 4X, 10X, 40X, 100X(Oil) | Movable Stage Size: | 156*138mm |
| Movable Stage Travel: | 76*54mm | ||
| High Light: | 10X Trinocular Fluorescence Microscope,20W Trinocular Fluorescence Microscope,Single lens digital biological microscope |
||
Product Description
Digital Trinocular Fluorescence Microscope LF-302
Usage
Fluorescence Microscope LF-302 is a sort of ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue, This fluorescence microscope can be applied in the fluorescence microscopy, such as biological pharmacy, medicine checking and measure, disease prevent and so on
Standard delivery
Main unit: 1pcs
4x, 10x, 40x, 100x(oil) plan achromatic objective lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Blue filter: 1pcs
Anti-dust cover: 1pcs
Optional Accessory
2x, 20x, 60x plan achromatic objective lens
0.5x, 1x C-mount camera adapter
5.0M digital camera
CCD camera
Fluorescence analysis software
Technical data
| Eyepiece | WF10X/20 |
| Objective lens | 4x, 10x, 40x, 100x(oil) |
| Mechanical movable stage | Size: 156*138mm Travel: 76*54mm |
| Interpupillary distance | 52mm-75mm |
| Trinocular tube | Inclined 30º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 6V/20W halogen bulb |
| Fluorescence unit | Chroma filter system UV, V, B, G |
| Power supply | 110V/220V |
