Geometric Horozontal Optical Measurement Device HOC300
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | HOC300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | standard exporing package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Working Table′s Size(mm): | 400*150mm | Stage Travel X-Axis: | 200mm |
|---|---|---|---|
| Stage Travel Y-Axis: | 100mm | Stage Travel Z-Axis: | 75mm(Focus) |
| Accuracy: | 2.5+L/150 | Screen Diameter: | Dia.300mmwith 4 Film Clips |
| Screen Rotary Range: | 0-360 | Digital Readout: | DC-3000 Counter With RS232 Output |
| HS Code: | 9031491000 | Port: | Shenzhen, China |
| High Light: | HOC300 Optical Measurement Device,75mm Optical Measurement Device,HOC300 optical measuring machines |
||
Product Description

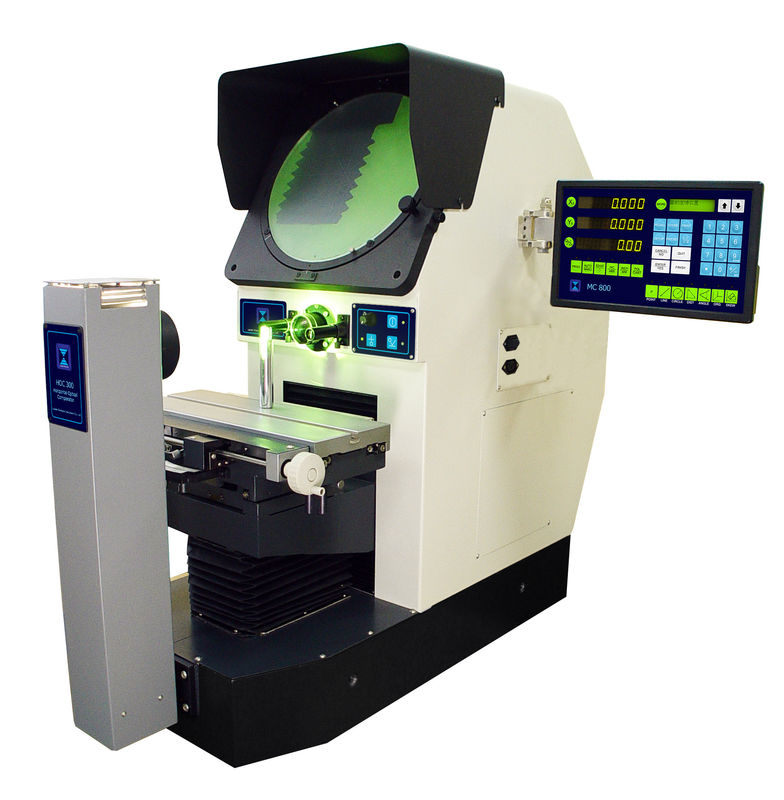

Geometric Horozontal Optical Measurement Device HOC300
Function of Horizontal Profile Projector (HOC300-2010)
1. Skew
2. Mm/inch conversion
3. ABS/INC conversion
4. Zero setting
5.1/2 calculation
6.0° 90° 270° 360° Conversion
7. Linear compensation
8. RS232 output
9. Geometric measurement
Technical data
| Item No. | HOC300-2010 |
| Working table's size(mm) | 400*150mm |
| Stage Travel X-axis | 200mm |
| Stage Travel Y-axis | 100mm |
| Stage Travel Z-axis | 75mm(focus) |
| Accuracy | (2.5+L/150)µm |
| Screen | Screen Diameter: Dia.300mmwith 4 film clips |
| Screen rotary range: 0°-360° | |
| Rotary angle resolution:1' or 0.01° | |
| Digital Readout | DC-3000 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance). |
| Illumination | Transmission and reflection:24V/150w-halogen lamp. |
| Power | AC110-120v, 200-240v, single phase 50/60Hz Total power 400W |
| Cooling | Fans |
| G.W/N.W | 240KG/160KG |
| Dimension(L*W*H mm) | 1090*585*1010 (mm) |
