• Handheld Vibration Meter VM-600
Handheld Vibration Meter VM-600

Handheld Vibration Meter VM-600

Product Details:

Place of Origin: china
Brand Name: L&D
Certification: CE ISO SGS
Model Number: VM-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Standard exporting package
Delivery Time: 4 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50, 000PCS/Year
Get Best Price Contact Now

Detail Information

Power Off: Manual Power Off Or Auto Power Off Data Output: USB, RS-232, Bluetooth
Operating Conditions: Temperature: 0~50 °c Humidity: <90 %Rh Power Supply: 4 X 1.5V AA Size (Um-3) Battery
Dimensions: 124 X 62X 30 Mm Net Weight: 120 G (Not Including Batteries)
Accuracy: 5 % Of Reading + 2 Digits Battery Indicator: Low Battery Indicator
High Light:

ISO Handheld Vibration Meter


Velocity Handheld Vibration Meter


Acceleration laser vibration meter

Product Description

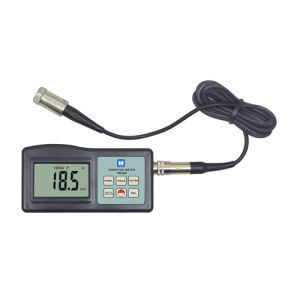

Handheld Vibration Meter VM-600


Feature & Advantage

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use "USB data output" and "RS-232 data output" to connect with PC.
* Provide "Bluetooth ™ data output" choice.


Technical data

  Sensor Piezoelectric Accelerometer
  Measuring Range Acceleration: 0.1~400 m/s²   0.3~1312 ft/s²   0.0~40 g   Equivalent Peak
Velocity: 0.01~400 mm/s   0.004~16.0 inch/s   True RMS
Displacement: 0.001~4.0 mm   0.04~160.0 mil   Equivalent Peak-peak
  Frequency Range Acceleration: 10 Hz ~ 1k Hz   10 Hz ~ 10k Hz
Velocity: 10 Hz ~ 1k Hz
Displacement: 10 Hz ~ 1k Hz
  Accuracy 5 % of Reading + 2 digits
  Analogue Output AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
  Power Off Manual Power Off or Auto Power Off
  Battery Indicator Low Battery Indicator
  Data Output USB, RS-232, Bluetooth
  Operating Conditions Temperature: 0~50 °C Humidity: <90 %RH
  Power Supply 4 x 1.5V AAA size (UM-4) Battery
  Dimensions 124 x 62x 30 mm
  Weight 120 g (Not Including Batteries)

Standard Accessories
 1. Main Unit
 2. Magnetic Suction Seat
 3. Piezoelectric Transducer
 4. Probe (Cone)
 5. Probe (Spherical)
 6. Carrying Case
 7. Manual Book


Optional Accessories
 1. Headset
 2. USB, RS-232 data cable with software
 3. Bluetooth data out put with software

Unit Type:piece
Package Weight:1.000kg (2.20lb.)
Package Size:28cm x 25cm x 8cm (11.02in x 9.84in x 3.15in)
