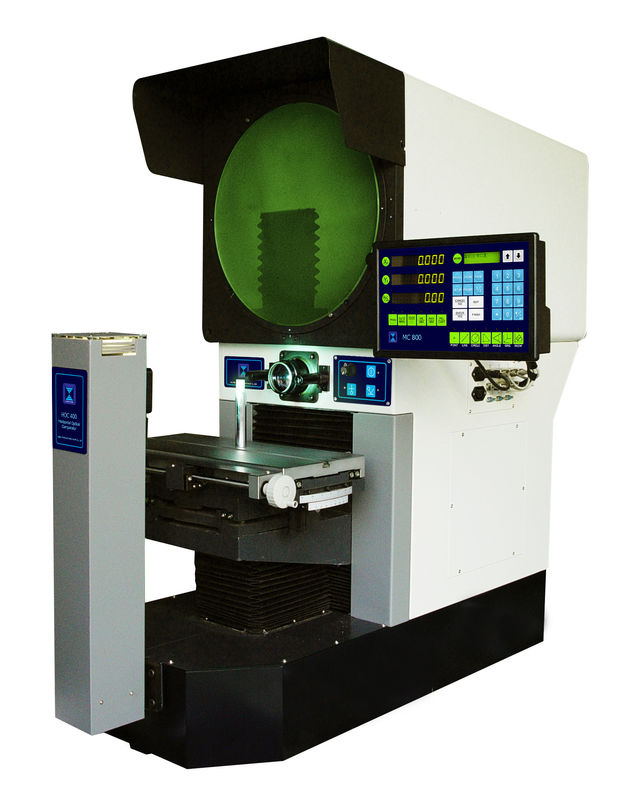

Horizontal Profile Projector With 400mm Diameter Protractor Screen

Profile Projector HOC400 series are a reliable and affordable non-contact optical measuring system of high precision and efficiency. This Optical Measurement Device is widely used at the field of mechanism, meter, electronic, rubber industry for quality control.
Profile Projector HOC400 can inspect all kinds of surface and outline of screws. This preicisio measuring device is an effective metrical and analytic system for education, research institute and lab.

Powerful Metrology Counter provides fast geometric computations solution
The protractor screen has an effective diameter of 400mm(16"), allowing large workpieces to be inspected. The screen rotation can be digitally displayed with a resolution of 1' or 0.01° .

1. 400mm diameter screen with digtial protractor
2. Magnification accuracy: 0.08% contour, 0.12% surface.
3. Halogen Profile and fiber surface illumination
4. Powerful Geometric multifunction data processing system
5. Aviable Mini printer, footswitch and other accesssories
6. Helix angle stage adjustable: ± 15°
7. Heavy-duty, metal construction
8. big travel and high accuracy


Technical Data

Item No. HOC400-2515
Working table' s size(mm) 450*200mm
Stage Travel X-axis 250mm
Stage Travel Y-axis 100mm(for focus)
Stage Travel Z-axis 150mm
Accuracy (2.5+L/150)µm
Screen Screen Diameter: 400mmwith 4 film clips
Screen rotary range: 0° -360°
Rotary angle resolution: 1' or 0.01°
Digital Readout Metrolgoy Counter DC-3000 with RS232 output
Illumination Transmission and reflection: 24V/150w-halogen lamp.
Power AC110-120v, 200-240v, single phase 50/60Hz Total power 400W
Cooling Fans
G. W/N. W 210KG/160KG
Dimension(L*W*H mm) 1090*585*1010 (mm)


Optional Delivery

Measuring Software Edge Detector Charts(3 kinds)
HOC400-20X Objective HOC400-50X Objective HOC400-100X Objective
Holder with Clamp V-Block with Clamp Swivel Center Support
Mini-Printer Rotary table Calibration Scale


Standard Delivery

Digital Readout DC-3000 HOC400-5X Objective Screen Clamp
Foot-Switch Power Cable Light source


We guarantee 18 months Warranty time

Features of Metrology Counter DC-3000
(1). Skew
(2). MM/inch conversion
(3). ABS/INC conversion
(4). Zero setting
(5). 1/2 calculation
(6). 0° 90° 270° 360° Conversion
(7). Linear compensation
(8). RS232 output
(9). Geometric measurement
