Product Details:

Place of Origin: CHINA
Brand Name: L&D
Certification: CE
Model Number: VOC-1505

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Vacuum & Free Fumigation Plywood Export Package
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50, 000PCS/Year
Get Best Price Contact Now

Detail Information

Image: Erect Stage Travel X-Axis: 150mm
Stage Travel Y-Axis: 50mm Stage Travel Z-Axis: 90mm(for Focus)
Resolution: 0.5µm Measuring Unit: Built-in Linear Scales
Accuracy: (3+L/75µm Origin: Dongguan
HS Code: 9031491000 Port: Shenzhen, China
High Light:

90mm Profile Projector Measurement


VOC1505 Optical Measurement Equipment


9cm visual measuring machine

Product Description

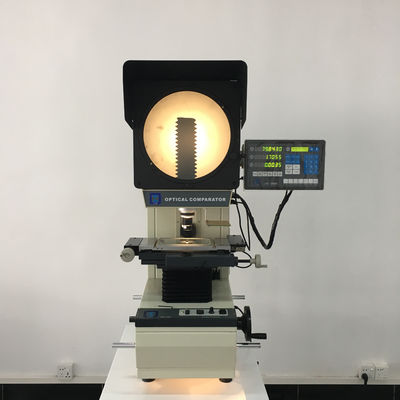

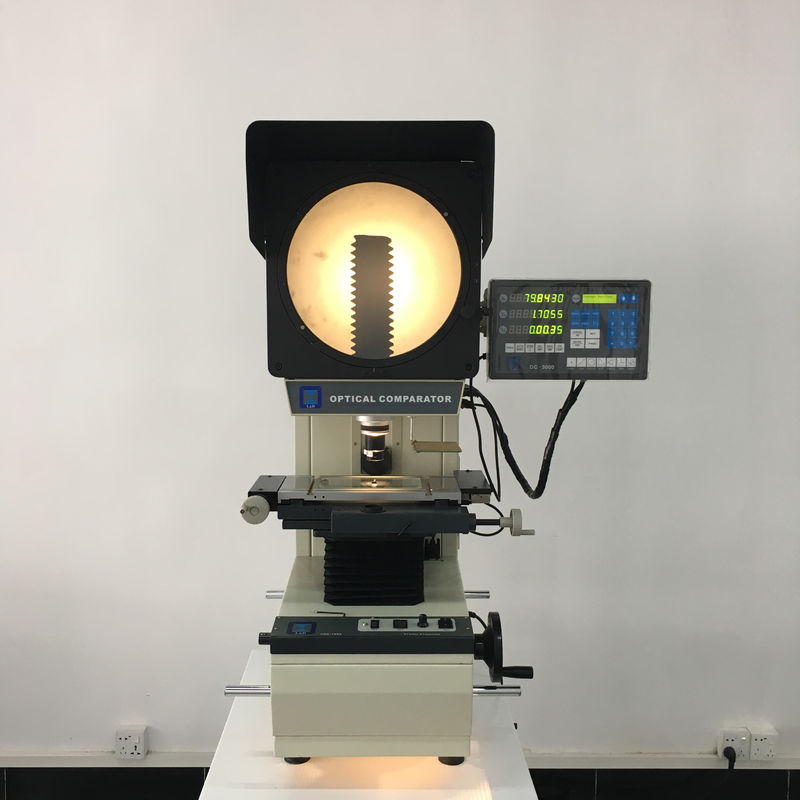

O-Rings and Seals checking machine VOC-1505

Brief Introduction:

Quality products Optical Comparator VOC-1505 from Leader Precisionprovide dimensional measurement of O Rings, Silicone, O-rings, seal kits, as well as angle measurement, it is very easy, fast and accurate for process control and improvement.


With producing an extremely sharp and clear Superb-high resolution image on the projection screen, the optical comparator VOC600 can automatically compare a work piece to its CAD data and get an accurate and repeatable OK/NG result.

Features & Advantage
  • Excellent optical measuring system
  • Magnification accuracy: 0.08% under contour illumination; 0.12% under surface illumination
  • Equipped with DC-3000 Metrology Counter for Geometry measurement.
  • Supplied with Foot-switch for quick measuring.
  • Erect image measuring for different requirements
  • High Precision measuring table with T-slot, easy to fix the work pieces
  • 0.5 micron High Resolution linear scale
  • Customer can also choose optical Edge Detector system as option for auto measurment.
  • Customer can also choose Metrology software as option, the measurement data can be exported to Ms OFFICE

Profile Projector Warranty
We supply 18 months Warranty time instead of 12 months


Technical Data

Erect VOC1505
Metal table's size(mm) 340*152
Glass table's size(mm) 196*96
Stage Travel X-axis 150mm
Stage Travel Y-axis 50mm
Stage Travel Z-axis 90mm(for focus)
Resolution 0.5µm
Measuring unit Built-in linear scales
Accuracy ≤(3+L/75)µm
Screen Screen Diameter: ¢312mmwith 4 film clips
Screen material: fine ground glass
Reference line: Staggered cross and crosshair
Screen rotary range: 0°~360°
Rotary angle resolution:1' or 0.01°
Digital Readout DC-3000 Metrology Counter with RS-232C output
Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting,
½ calculation, 0 ° 90 ° 270 ° 360 ° conversion, linear compensation,
RS-232 data output
Illumination Contour illumination: 24V/150W halogen bulb
Reflected illumination: 24V/150W halogen bulb
Filter (option) for contour illumination
Power AC110-120v, 200-240v, single phase 50/60Hz,Total power 400W
Cooling Built-in cooling fans
G.W/N.W 165/110KG


Technical Data of Objective Lens

Objective Lens Magnification 10X 20X 50X 100X
View field diameter ¢30 ¢15 ¢6.1 ¢3
Working Distance(mm) 77.7 44.3 38.4 25.3
Max. Workpiece height 80mm 80mm 80mm 80mm


Standard Delivery

Digital Readout DC-3000 VOC-10X Objective Screen Clamp
Foot-Switch Rotary table Power cable


Optional Delivery

2D Measuring Software Optical Edge Detector Overlay Charts (3 kinds)
VOC-20X Objective lens VOC-50X Objective lens VOC-100X Objective lens
Holder with Clamp V Block with Clamp Swivel Center Support
Mini-Printer Calibration Scale Calibration gauge
