Semiconductor FPD Upright Metallurgical Inspection Microscope LM-312
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | LM-312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed with foam firstly,and then reinforced with carton for outer packing |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/months |
|
Detail Information |
|||
| Name: | Metallurgical Microscope | Observation: | Bright Filed / Dark Field / Polarizing / DIC |
|---|---|---|---|
| Eyepiece: | PL10X/25 | Objective Lens: | 5X, 10X, 20X, 50X |
| Nosepiece: | Motor-driven | Stage: | 14*12 Inch |
| Illumination: | Transmitted/reflective | ||
| High Light: | LM-312 Upright Microscope,5X industrial inspection microscope,FPD digital inspection microscope |
||
Product Description

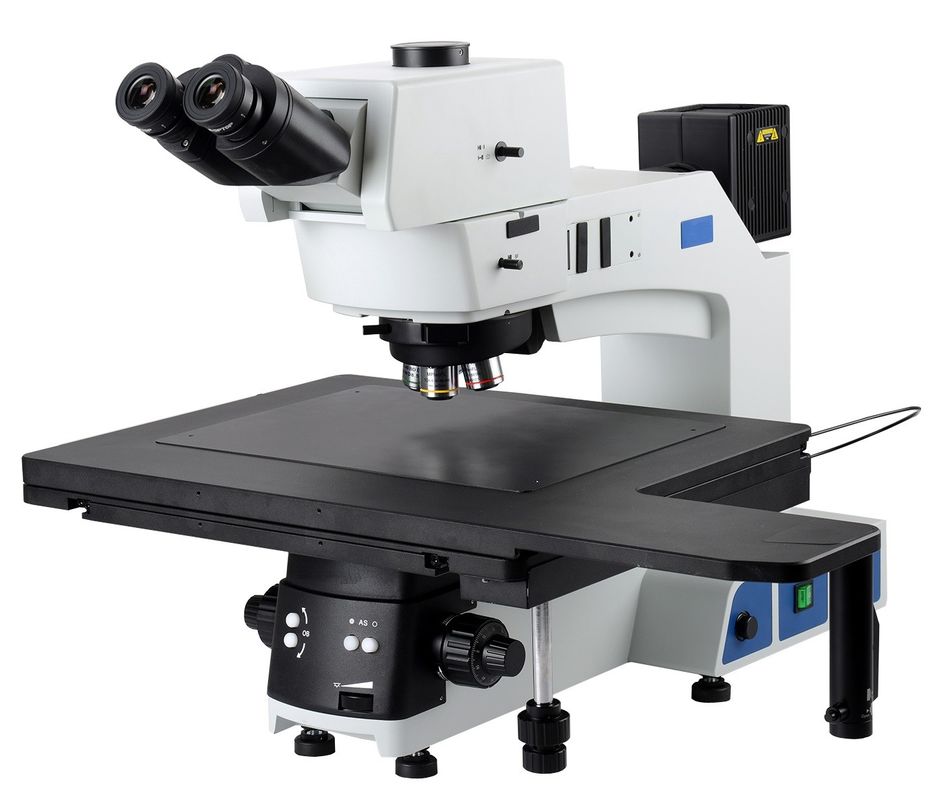

Semiconductor FPD Upright Metallurgical Inspection Microscope LM-312
LM-312 semiconductor FPD Inspection Microscope
Usage
With available variety of wafer holders (including 4/6/8/12 inches), LM-312 metallurgical inspection microscope is professionally used to detect wafer and flat panel display, with max. diameter 300mm of wafer and 17 inches of PFD. More comfortable, flexible and quick operation is available with upgraded ergonomics design.
Feature
- 14 X 12 inches big travel and stable stage
- Electric turret for nose piece and aperture diaphragm, safe and accurate
- Standard with Bright field, dark field, polarizing and DIC, LM-312 is widely used to inspect the semiconductor, FPD, circuit package, PCB, materials, casting metal ceramic part, abrasive tools and so on.
Technical data
| Optical System | Infinity color corrected optical system |
| Observation | Bright filed / Dark field / Polarizing / DIC |
| Viewing Head | Tilting trinocular head (Erect image), 0-35 degree adjustable, interpupillary distance: 50-76mm, splitting ratio: 100:0 or 0:100 Eyepiece |
| Eyepiece | High eye point wide field plan eyepiece PL10X/25mm, with adjustable diopter; reticle attachable |
| Objective | BD semi-APO DIC objective 5X/10X/20X/50X/100X |
| Long working distance BD semi-APO DIC objective 20X | |
| Long working distance BD semi-APO objective 50X/100X | |
| Bright field semi-APO DIC objective 5X/10X/20X/50X/100X | |
| LWD Bright field semi-APO DIC objective 20X | |
| Nosepiece | Sextuple motor-driven nosepiece (with DIC slot, bright/dark field) |
| Frame | Reflected frame with low position coaxial focus mechanism, coarse range: 35mm, fine precision: 0.001mm. With upper limit and tension adjustment. Built-in 100-240V wide voltage system |
| Transmitted & Reflected frame with low position coaxial focus mechanism, coarse range: 35mm, fine precision: 0.001mm. With upper limit and tension adjustment. Built-in 100-240V wide voltage system | |
| Stage | 12 inches three layers mechanical stage with glass plate, size: 420X710mm.moving range: 305X356mm; X, Y moving hand wheel with clutch handle, right hand shank,move quickly. |
| Illumination | BD reflected illuminator, with electronic variable aperture and field diaphragm, center adjustable; with switch for changing bright and dark field; with slots for filters and polarizing kit,12V100W halogen lamp house |
| Camera Adapter | 0.5X / 0.65X / 1X C-mount adapter |
| Others | Polarizing kit; interference filters; high precision micrometer; DIC attachment; 12" wafer holder |
