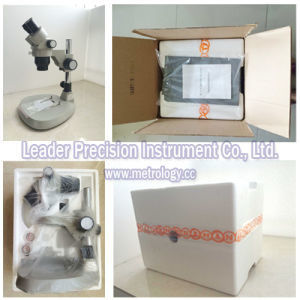

Trinocular 70X 4.4mm Upright stereo Microscope
Product Details:
| Place of Origin: | china |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | XTL-2021 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Model NO.: | XTL-2021 | Magnification: | 10-70X |
|---|---|---|---|
| Type: | Stereomicroscope | Eyepiece: | Wf10X/20 |
| Zoom Ratio: | 1:7 | Lens Zoom Range: | 0.65X-4.5X |
| Total Magnification: | 6.5X-45X | Field Of View: | 30.7mm-4.4mm |
| Working Distance: | 95mm | Interpupillary Distance: | 55mm-75mm |
| Binocular Or Trinocular Tube: | Inclined 45 | ||
| High Light: | 4.4mm student compound microscope,70X student compound microscope,best microscopes for high school students |
||
Product Description
Trinocular 70X 4.4mm Upright stereo Microscope
Usage
This stereo microscope is widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PC
Feature
1) Zoom lens microscope
2) Erect image
3) Can connect CCD camera
Standard delivery
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories for this microscope
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5X, 0.75X, 1.5X, 2X
Technical data
| Zoom ratio | 1: 7 |
| Lens zoom range | 0.65X-4.5X |
| Eyepiece | WF10X/20mm |
| Total magnification | 65X-450X |
| Field of view | ¢ 30.7mm-¢ 4.4mm |
| Working distance | 95mm |
| Interpupillary distance | 55mm-75mm |
| Trinocula tube | inclined 45º |
| Diopter adjustment | ± 5 diopter |
| Trinocular body rotation | 360º |
| Power supply | 110V/60HZ or 220V/50HZ |
| Top halogen lamp | 6V, 15W adjustable brightness |
| Bottom fluorescent lamp | 5W |
| Eyepiece | WF10X | WF15X | WF20X | WF25X | |||||
| Auxiliary lens | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Working distance(mm) |
| 0.5X | 3.3X-22.5X | ¢ 61.4-¢ 8.8 | 4.9X-33.8X | ¢ 49.2-¢ 7 | 6.5X-45X | ¢ 40-¢ 5.8 | 8.1X-56.3X | ¢ 37-¢ 5.2 | 150 |
| 0.75X | 4.9X-33.8X | ¢ 41-¢ 5.9 | 7.3X-50.6X | ¢ 32.8-¢ 4.7 | 9.75X-67.5X | ¢ 26.6-¢ 3.8 | 12.2X-84.4X | ¢ 24.6-¢ 3.5 | 100 |
| 1X | 6.5X-45X | ¢ 30.7-¢ 4.4 | 9.8X-67.5X | ¢ 24.6-¢ 3.5 | 13X-90X | ¢ 20-¢ 2.9 | 16.3X-112.5X | ¢ 18.5-¢ 2.6 | 95 |
| 1.5X | 9.8X-67.5X | ¢ 20.5-¢ 2.9 | 14.6X-101.3X | ¢ 16.4-¢ 2.3 | 19.5X-135X | ¢ 13.3-¢ 1.9 | 22.4X-168.8X | ¢ 12.3-¢ 1.8 | 41 |
| 2X | 13X-90X | ¢ 15.4-¢ 2.2 | 19.5X-135X | ¢ 12.3-¢ 1.8 | 26X-180X | ¢ 10-¢ 1.4 | 32.5X-225X | ¢ 9.2-¢ 1.3 | 26 |
