    Trinocular Inverted Fluorescence Microscopes with CCD CAMERA

    Product Details:

    Place of Origin: CHINA
    Brand Name: L&D
    Certification: CE
    Model Number: LIF-305

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiation
    Packaging Details: Standard Exporting Packing
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 50, 000PCS/Year
    Get Best Price Contact Now

    Detail Information

    Magnification: 20X-2000X Type: Fluorescent
    Kind Of Light Source: 110V/220V Principle Of Optics: Fluorescent Illumination
    Name: Binocular Fluorescence Microscope Eyepiece: WF10X/20
    Plan Achromatic Objective Lens: 10X, 20X, 40 Phase-Contrast Lens: 20X
    Movable Stage Size: 350*208mm Movable Stage Travel: 50*50mm
    Interpupillary Distance: 52mm-75mm Trinocular Tube: Inclined 45o
    Diopter Adjustment: ± 5 Diopter HS Code: 9011200000
    Port: Shenzhen, China
    High Light:

    52mm upright confocal microscope

    ,

    CCD upright fluorescence microscope

    ,

    20X binocular biological microscope

    Product Description

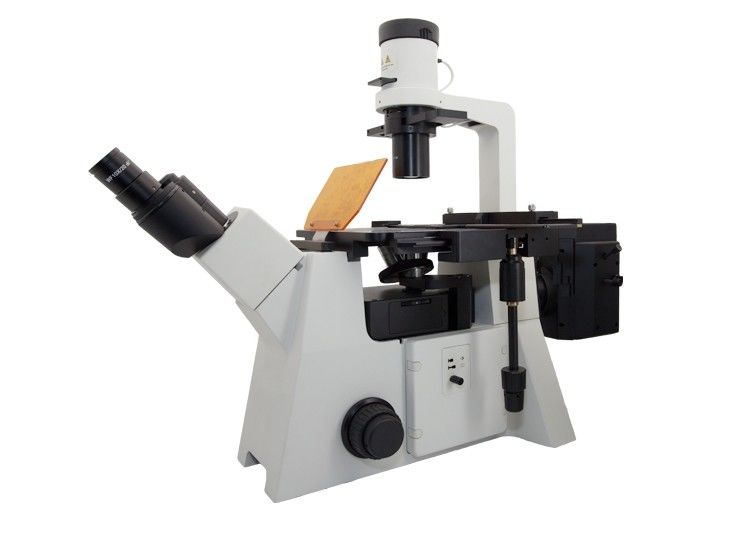

    Trinocular Inverted Fluorescence Microscopes with CCD CAMERA

    Trinocular Fluorescence Microscope With CCD Camera (LIF-305)

    Usage
    Binocular Fluorescence Microscope LIF-305 is a sort of ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue, This fluorescence microscope can be applied in the fluorescence microscopy, such as biological pharmacy, medicine checking and measure, disease prevent and so on



    Technical data

    Eyepiece WF10X/20
    Objective lens 10x, 20x, 40x, phase-contrast 20x
    Mechanical movable stage Size: 350*208mm
    Travel: 50*50mm
    Interpupillary distance 52mm-75mm
    Trinocular tube Inclined 45º
    Diopter adjustment ± 5 diopter
    Illumination 6V/30W halogen bulb
    Fluorescence unit Chroma filter system UV, V, B, G
    Power supply 110V/220V



    Standard delivery

    • Main unit: 1pcs
    • 10x, 20x, 40x plan achromatic objective lens: 1pcs each
    • 20x phase-contrast objective: 1pcs
    • 6V/30W Osram halogen bulb: 1pcs
    • Green, blue and yellow filter: 1pcs
    • Anti-dust cover: 1pcs


    Optional Accessory

    • 4x, 60x plan achromatic objective lens
    • 10x, 40x phase-contrast objective
    • 0.5x, 1x C-mount camera adapter
    • 5.0M digital camera
    • CCD camera
    • Fluorescence analysis software
