• Big LCD Screen Micro-Vickers 2000gf Force Digital Hardness Tester
Big LCD Screen Micro-Vickers 2000gf Force Digital Hardness Tester

Big LCD Screen Micro-Vickers 2000gf Force Digital Hardness Tester

Product Details:

Place of Origin: CHINA
Brand Name: HARDRULER
Certification: CE
Model Number: HVD-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Packed in aluminum plastic film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50, 000PCS/Year
Get Best Price Contact Now

Detail Information

Eyepiece: 10X Magnification: 100X(for View), 400X(for Measurement)
Load Control: Automatic Load/dwell/unload Lens & Turret: Auto
Scale: HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HB Lens: 10x, 40x
Resolution Of Hardness Value: 0.1HV
High Light:

2000gf Digital Hardness Tester

,

HVD1000 Digital Hardness Tester

,

2000gf rockwell hardness tester

Product Description

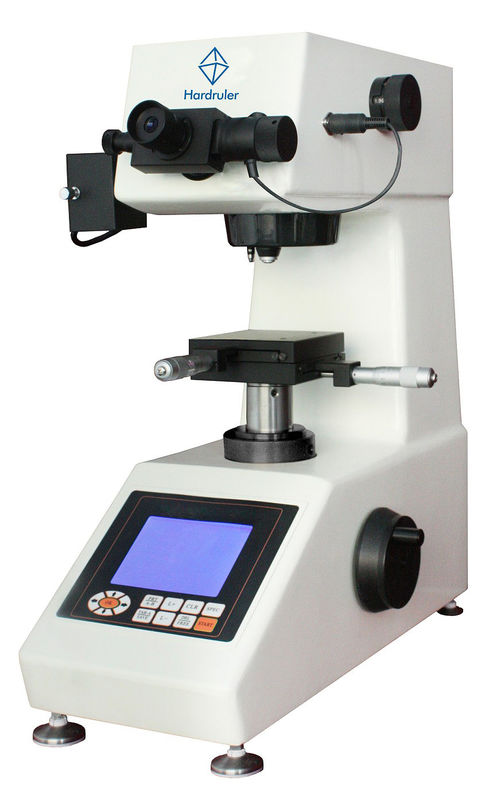

Big LCD Screen Micro-Vickers 2000gf Force Digital Hardness Tester



Usage

Model HVD-1000 series Digital Micro-Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.



Typical applications

1. Steels, IC wafers, non-ferrous metals

2. Thin plastic, metallic foils, plating, coating, surface layers, laminated metals

3. Glass, ceramics, agate, gem

4. Depth and gradient of carburized and flame hardened layers



Features & Advantage

1. Fully automatic load, dwell and unloading control

2. Menu operated large LCD screen

3. 2kg load optional

4. CCD Video measurement system optional



Specifications

Product name Digital Micro-Vickers Hardness Tester
Model HVD-1000
Vickers scales HV0.01, V0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display Methods, force, diagonals length, hardness value, dwell time, etc
Testing load gf 10, 25, 50, 100, 200, 300, 500, 1000 (2000gf optional)
N 0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8
Testing range HV1~HV2967
Lens & indenter switch Motorized turret
Load control Automatic (loading/dwell/unloading)
Dwell time Adjustable 0~60s
Output data RS-232C/bulit-in printer
Illumination Halogen lamp light source
Magnification of microscope Observation:10x; measurement:40x
Eyepiece magnification 10x, digital encoder built-in
XY stage Size:100x100mm; Travel:25 x25mm; Resolution:0.01mm
Max. height of specimen 90mm
Instrument throat 100mm
Dimension (L*W*H) 480*310*550mm
Gross/Net weight 50kg/40kg
Power supply 220V or 110V AC, 50 or 60Hz
Accuracy Conforms to EN-ISO 6507 , ASTM E384, GB/T4340.2


Standard delivery

Main unit 1pcs
Thermal printer 1pcs
Data-output RS-232C 1pcs
Diamond Vickers indenter 1pcs
10x objective 1pcs
40x objective 1pcs
10x digital eyepiece 1pcs
XY-stage with micrometers 1pcs
Clamping device 3pcs
Adjustable foot 4pcs
Level gauge 1pcs
Hardness test blocks HV1 1pcs
Hardness test blocks HV0.2 1pcs
Accessories case 1pcs
Anti-dust cover 1pcs
Instruments certificate 1pcs
Installation & user manual 1pcs



Optional accessories

2000gf test load

Knoop indenter

CCD system
