    10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics

    Product Details:

    Place of Origin: CHINA
    Brand Name: HARDRULER
    Certification: CE
    Model Number: HV-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiation
    Packaging Details: Standard exporting package
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50, 000PCS/Year
    Get Best Price Contact Now

    Detail Information

    Application: Metal, Ceramics And Glass Standard: ISO, ASTM, GB/T
    Calibrating Method: Standard Hardness Test Blocks Rated Voltage: 110V/220V
    Support Language: English Customized: Customized
    Vickers Scales: Hv0.3, Hv0.5, Hv1, Hv2, Hv2.5, Hv3, Hv5, Hv10 Testing Range: Hv1~Hv2967
    Lens & Indenter Switch: Manual Turret Load Control: Automatic (Loading/Dwell/Unloading)
    Dwell Time: Adjustable 0~60s Hardness Indication: 1hv/LCD Display
    Illumination: Halogen Lamp Light Source Objectives: Observation:10X; Measurement:20X
    HS Code: 9024102000 Port: Shenzhen, China
    High Light:

    HV10 Digital Hardness Tester

    ,

    Steel Digital Hardness Tester

    ,

    rockwell hardness test apparatus

    Product Description

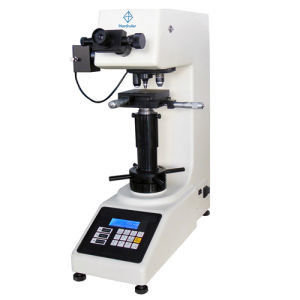

    10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics


    Usage
    Model HV-10 series Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.

    Typical applications
    • Cemented carbide, steels, ceramics, non-ferrous metals
    • Thin plates, metallic foils, plating
    • Material strength, effect of heat treatment, depth of carburized or decarburized layer and flame hardened layer, effect of hardening, hardness resulting from welding or deposition
    • Routine testing of precision components



    Features & Advantage
    1. Closed-loop system with load cell enhances the accuracy
    2. Integrated hardness calculator
    3.2-way switchable optical paths
    4. CCD video measurement system optional



    Specifications

    Product name Vickers Hardness Tester
    Model HV-10  HV-10M
    Vickers scales HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10
    Testing load Kgf 0.3, 0.5, 1, 2, 2.5, 3, 5, 10
    N 2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49.03, 98
    Testing Range HV1~HV2967
    Lens & indenter Switch Manual turret                 Motorized turret
    Load control Automatic (loading/dwell/unloading)
    Dwell time Adjustable 0~60s
    Hardness indication 1HV/LCD display
    Illumination Halogen lamp light source
    Objectives Observation:10x; measurement:20x
    Eyepiece 10x
    XY stage Size:100x100mm; travel:25 x25mm; resolution:0.01mm
    Max. height of specimen 170mm
    Instrument throat 130mm
    Dimension (L*W*H) 535×230×580mm
    Packing dimension 630*460*710mm
    Gross/Net weight 50kg/40kg
    Power supply 220V or 110V AC, 50 or 60Hz
    Accuracy Conforms to EN-ISO 6507 , ASTM E92, GB/T4340.2



    Standard delivery

    Main unit 1pcs
    Diamond Vickers indenter 1pcs
    Objective 10x 1pcs
    Objective 20x 1pcs
    Analogue eyepiece 10x 1pcs
    XY-stage with micrometers 1pcs
    Adjustable foot 4pcs
    Level gauge 1pcs
    Hardness test block 2pcs
    Accessories case 1pcs
    Anti-dust cover 1pcs
    Instrument certificate 1pcs
    Installation & user manual 1pcs
