• Depth Measuring 10cm 3µM Precision Height Gauge
  • Depth Measuring 10cm 3µM Precision Height Gauge

    Depth Measuring 10cm 3µM Precision Height Gauge

    Product Details:

    Place of Origin: china
    Brand Name: L&D, MICRO ACCURACY, HARDRULER
    Certification: CE, ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50, 000PCS/Year
    Get Best Price Contact Now

    Detail Information

    Model NO.: LH-0050 Customized: Non-Customized
    Structure: Desktop Material: Stainless Steel
    Application: School, Lab Type: Measurement Type
    Name: Digital Depth Measuring System (Lh-0050) Model: Lh-0050
    Measuring Range: 50mm Mini Readings: 0.001mm
    Accuracy: 0.001mm Measuring Speed: ≤500mm/Second
    Downwards Direction: 125-175gf (Shift 35gf) Horizontal Direction: 90-140gf
    Display: 8 Bit LED Display Functions: (1) Zero Setting (2) Auto Erection
    Trademark: Hardruler Transport Package: Export Package
    Specification: SGS Origin: Dongguan, China
    HS Code: 9001100001 Port: Shenzhen, China
    High Light:

    10cm Depth Measuring Gauge

    ,

    10cm Precision Height Gauge

    ,

    0.001mm Depth Height Gauge

    Product Description

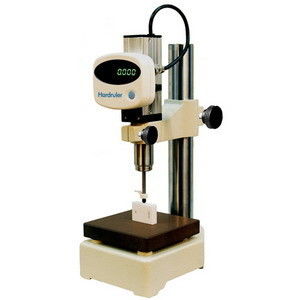

    Depth Measuring 10cm 3µM Precision Height Gauge

    Usage:
    To measure the Depth, Height, Flatness and Parallelism of work pieces

    Character:
    Excellent functionality and easy operation
    Data out
    MM/INCH models
    High durability and high accuracy are ensured by an improved column design
    Standard with Ceramics base

    Technical Parameter:
    Model LH-0050 LH-0100
    Measuring Range 50mm 100mm
    Mini readings 1µm
    Accuracy 1µm 3µm
    Measuring Speed ≤500mm/second
    Measuring Force Downwards direction: 125-175gf
    (Shift 35gf)
    Downwards direction: 135-195gf
    (Shift 35gf)
    Horizontal direction: 90-140gf Horizontal irection:100-150gf
    Data Processor Display: 8 Bit LED display
    Functions: (1) Zero setting
    (2) Auto Erection
    (3)/ MM/INCH conversion
    Temperature 20ºC
    Humidity ≤60%
    Weight 450g 600g
    Voltage DC5V 1000mA
