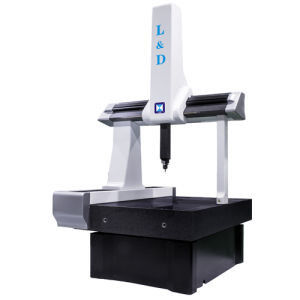

    RENISHAW MH20I Automatic 3D Coordinate Measuring Machine INSPIRE564

    Automatic High Precision CNC 3D Coordinate Measuring Machine INSPIRE564
    Usage
    CNC Coordinate Measuring machine is widely used in the field of machinery, automobile, aviation, mould, metal and high-precision tool manufacturing, which can inspect the geometric dimension, shape and position of the box, guide rail, gear, curve, cam and other work-pieces. This machine is necessary for CAD, CAE and CAM in reverse engineering.


    Feature & Advantage
    • Monolithic granite table, unilateral moving bridge structure, optimize the movement performance and ensure CNC 3D coordinate measuring machine with the stability and precision of the mechanical systems
    • Three axes use the 000 level high-precision nature granite guides, so three-axis has the same temperature characteristics, good rigidity and anti-aging deformation
    • All guides use high-precision air bearings, with pre-press design and no abrasion, run more smoothly and ensure coordinate measuring machine with excellent dynamic performance of the machine
    • Z-axis pneumatic balance design to improvecoordinate measuring machine with motion features
    • Adopt the RENISHAW self-adhesive strip of metal reflection grating scale, so that three axes have the same coefficient of expansion and enhance the stability of the equipment
    • Adopt the high-precision RENISHAW MH20I probe
    • We provide various probes for option:

                    MH20I Manual indexing Probe/TP20 Probe

                    PH10T Motorized Indexing Head/TP20 Probe

                    PH10M Motorized Indexing head/TP20 proe/SP25M Scanning probe

    • Adopt the JMC high quality air filter and regulator from Japan, which ensure that the machine can be used long-term stability
    • Powerful CMM software RationalDMIS provides the perfect solution for measurement, friendly interface, easy to learn and use

    Specification

    Model INSPIRE564 INSPIRE686 INSPIRE8106 INSPIRE10158
    Travel (mm) X 500 600 800 1000
    Y 600 800 1000 1500
    Z 400 600 600 800
    Driving System Servo Motor
    Control System RENISHAW UCC Series with Joystick
    Probing System RENISHAW MH20I or PH10T+TP20
    Measuring Software RationalDMIS
    Structure Sliding Bridge Type
    Guide Air Bearing
    Accuracy (µm) MPEE = ( 2.3 + L/250 ) MPEE = ( 3.2 + L/200 )
    Resolution (µm) 0.5
    Dimension(m) 1.2*1.6*2.3 1.3 *1.8 *2.5 1.6 * 2.3 x*2.8 1.8 * 2.6 * 3.2
    Weight(kg) 1200                                               1400 2720 3300
    Max. load (kg) 400 500 600 800



    Environment

    Power Supply 220 V ± 10% 50/60 Hz
    Air Consumption 120L/min at 0.4 MPa
    Air Supply ³ 0.5 MPa
    Temperature 18 ℃ ~ 22℃
