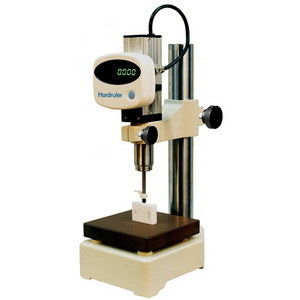

3 Micro Ceremics Height Gauge With Dial Indicator
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MICRO ACCURACY |
| Certification: | CE, ISO |
| Model Number: | LH-0100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Measuring Range: | 100mm | Measuring Speed: | ≤500mm/Second |
|---|---|---|---|
| Measuring Force: | Downwards Direction: 135-195gf (Shift 35gf) | Horizontal Irection: | 100-150gf |
| Display: | 8 Bit LED Display | Temperature: | 20oc |
| Weight: | 450g | Voltage: | DC5V 1000mA |
| Origin: | Dongguan, China | HS Code: | 9001100001 |
| Port: | Shenzhen, China | ||
| High Light: | Height Gauge With Dial Indicator,3 Micro height master gauge,Ceremics digimatic height gauge |
||
Product Description
3 Micro Ceremics Height Gauge With Dial Indicator
Usage
To measure the Depth, Height, Flatness and Parallelism of work pieces
Feature
- Excellent functionality and easy operation
- Data out
- MM/INCH models
- High durability and high accuracy are ensured by an improved column design
- Standard with Ceramics base
| Model | LH-0050 | LH-0100 |
| Measuring Range | 50mm | 100mm |
| Mini readings | 1µm | |
| Accuracy | 1µm | 3µm |
| Measuring Speed | ≤500mm/second | |
| Measuring Force | Downwards direction: 125-175gf (Shift 35gf) |
Downwards direction: 135-195gf (Shift 35gf) |
| Horizontal direction: 90-140gf | Horizontal irection:100-150gf | |
| Data Processor | Display: 8 Bit LED display Functions: (1) Zero setting (2) Auto Erection (3)/ MM/INCH conversion |
|
| Temperature | 20ºC | |
| Humidity | ≤60% | |
| Weight | 450g | 600g |
| Voltage | DC5V 1000mA | |
