Ceramic table 100mm stroke digital Height Gauge for measure the Depth, Height, Flatness and Parallelism
Product Details:
| Place of Origin: | china |
| Brand Name: | MICRO ACCURACY |
| Certification: | CE, ISO |
| Model Number: | LH-0100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Measuring Range: | 50mm | Mini Readings: | 0.001mm |
|---|---|---|---|
| Accuracy: | 0.001mm | Measuring Speed: | 500mm/Second |
| Downwards Direction: | 125-175gf (Shift 35gf) | Horizontal Direction: | 90-140gf |
| Display: | 8 Bit LED Display | HS Code: | 9001100001 |
| Port: | Shenzhen, China | ||
| High Light: | 50mm Digital Vernier Height Gauge,LH0050 Digital Vernier Height Gauge,Stainless electronic height gauge |
||
Product Description

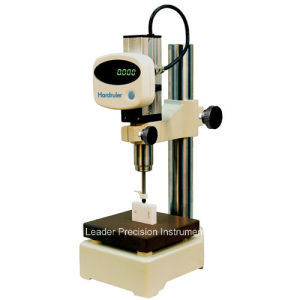

Ceramic table 100mm stroke digital Height Gauge for measure the Depth, Height, Flatness and Parallelism
Usage
To measure the Depth, Height, Flatness and Parallelism of work pieces
Character
Excellent functionality and easy operation
Data out
MM/INCH models
High durability and high accuracy are ensured by an improved column design
Standard with Ceramics base
Technical Parameter
| Model | LH-0050 | LH-0100 |
| Measuring Range | 50mm | 100mm |
| Mini readings | 1µm | |
| Accuracy | 1µm | 3µm |
| Measuring Speed | ≤500mm/second | |
| Measuring Force | Downwards direction: 125-175gf (Shift 35gf) |
Downwards direction: 135-195gf (Shift 35gf) |
| Horizontal direction: 90-140gf | Horizontal irection:100-150gf | |
| Data Processor | Display: 8 Bit LED display Functions: (1) Zero setting (2) Auto Erection (3)/ MM/INCH conversion |
|
| Temperature | 20ºC | |
| Humidity | ≤60% | |
| Weight | 450g | 600g |
| Voltage | DC5V 1000mA | |
