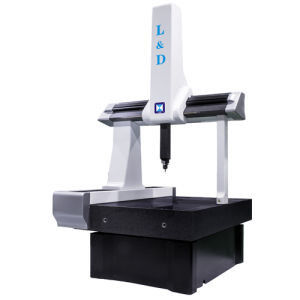

• CNC 3D Measuring Machine With Renishaw MH20I Probe
CNC 3D Measuring Machine With Renishaw MH20I Probe

CNC 3D Measuring Machine With Renishaw MH20I Probe

Product Details:

Place of Origin: CHINA
Brand Name: L&D
Certification: CE
Model Number: INSPIRE8106

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Standard exporting package
Delivery Time: 18 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50, 000PCS/Year
Get Best Price Contact Now

Detail Information

Travel: 800*1000*600mm Driving System: Servo Motor
Control System: Renishaw Ucc Series With Joystick Probing System: Renishaw Mh20I Or PH10t+Tp20
Measuring Software: Rationaldmis Structure: Sliding Bridge Type
Guide: Air Bearing Accuracy (µm): Mpee = ( 2.7 + L/250 )
Resolution (µm): 0.5 Origin: China
HS Code: 9031802000 Port: Shenzhen, China
High Light:

Mh20I CMM Coordinate Measuring Machine


CNC CMM Coordinate Measuring Machine


Servo Motor portable cmm machine

Product Description

CNC 3D Measuring Machine With Renishaw MH20I Probe

NC Coordinate Measuring machine is widely used in the field of machinery, automobile, aviation, mould, metal and high-precision tool manufacturing, which can inspect the geometric dimension, shape and position of the box, guide rail, gear, curve, cam and other work-pieces. This machine is necessary for CAD, CAE and CAM in reverse engineering.

1. Monolithic granite table, unilateral moving bridge structure, optimize the movement performance and ensure the stability and precision of the mechanical systems
2. Three axes use the 000 level high-precision nature granite guides, so three-axis has the same temperature characteristics, good rigidity and anti-aging deformation
3. All guides use high-precision air bearings, with pre-press design and no abrasion, run more smoothly and ensure excellent dynamic performance of the machine
4. Z-axis pneumatic balance design to improve motion features
5. Adopt the RENISHAW self-adhesive strip of metal reflection grating scale, so that three axes have the same coefficient of expansion and enhance the stability of the equipment
6. Adopt the high-precision RENISHAW MH20I probe
7. We provide various probes for option:
MH20I Manual indexing Probe/TP20 Probe
pH10T Motorized Indexing Head/TP20 Probe
pH10M Motorized Indexing head/TP20 proe/SP25M Scanning probe
8. Adopt the JMC high quality air filter and regulator from Japan, which ensure that the machine can be used long-term stability
9. Powerful CMM software RationalDMIS provides the perfect solution for measurement, friendly interface, easy to learn and use.


Model INSPIRE8106
XYZ stroke 800*1000*600mm
Driving System Servo Motor
Control System RENISHAW UCC Series with Joystick
Probing System RENISHAW MH20I or PH10T+TP20
Measuring Software RationalDMIS
Structure Sliding Bridge Type
Guide Air Bearing
Accuracy (µm) MPEE = ( 2.7 + L/250 )
Resolution (µm) 0.5
Max. load (kg) 1000
