CNC Vision Measuring System for wafe inspect

CNC Vision Measuring System for wafe inspect

Product Details:

Place of Origin: china
Certification: CE
Model Number: APC300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Standard export package
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model: APC300 XYZ Stroke: 300*200*200mm
Driving System: Servo Motor Control Speed: 200 Mm/S
Software: MicroCheck CCD Camera: Sentech Color CCD
Specification: ISO Origin: China
HS Code: 9031802000 Port: Shenzhen, China
High Light:

CV300 cnc vision measuring system


200mm/S cnc vision measuring system


Glass optical measuring instruments

Product Description

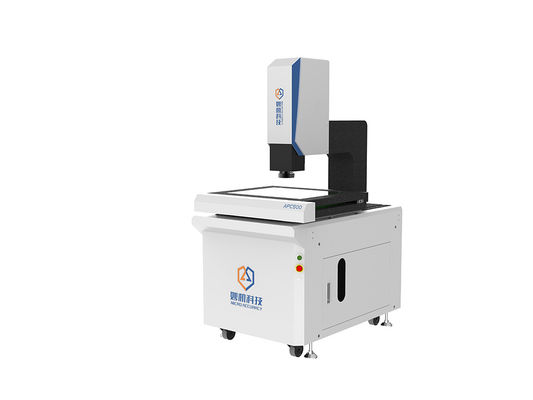

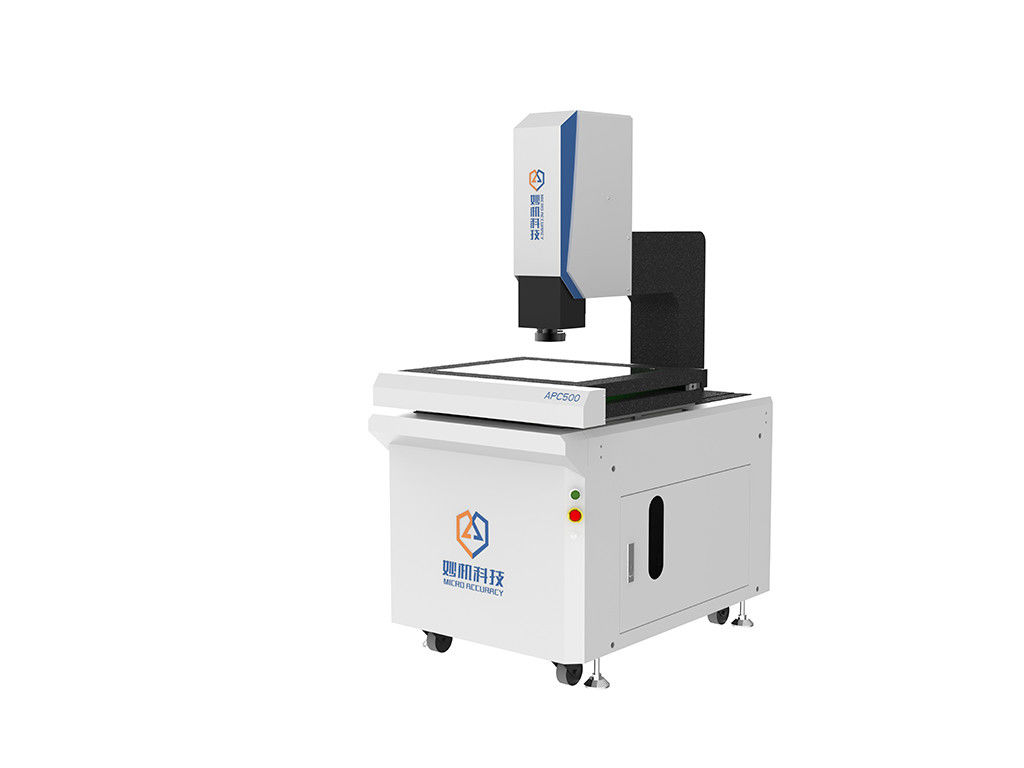

CNC Vision Measuring System for wafe inspect

Optical Measurement device APC300 for wafer inspect is high precision measurement solutions for wafer. Complete with Metrology Software, Programmable Zoom lens, Servo motion control, the Vision machine is ideal for wafer inspect

CNC Vision Measuring System for wafe inspect 0

Feature & Advantage

1. servo control, high positioning accuracy and smooth movement
2. Advanced 0.7-0.45x auto zoom lens, video magnification on monitor can reach 780x
3. Fast auto focus, so easy for inpecting wafer

4. Joystick and mouse operation, easy to use
5. Programmable LED cold lights, the light tensity can be adjusted automatically according wafer location and different magnification

Technical data

XYZ stroke300*200*200mm
Driving SystemServo Motor Control
Speed200 mm/s
Accuracy2.5 + L/200 (μm)
SoftwareMicroCheck Measuring software
Video System

CCD Camera: Sentech Color CCD Camera
Auto zoom Lens: 0.7X-4.5X

Total Magnifications: 27X-780X

Object View: 10.6mm-1.6mm

IlluminationProgrammable LED reflective and transmitted light
Power SupplyAC220V/110V 50/60 Hz
Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.
2. All our measuring machines are with CE certification
3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!

5. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!
After-sale Service
1. Free professional operation training
2. Warranty: 18 months instead of 12 months
3. Regularly upgrade of software is available free
4. Lifetime maintenance
Machines are ready for dispatch
CNC Vision Measuring System for wafe inspect 1CNC Vision Measuring System for wafe inspect 2CNC Vision Measuring System for wafe inspect 3
