    manual 2-D coordinate Measuring Machine for inspecting the 2D sizes of connector, spring, PCB, mold

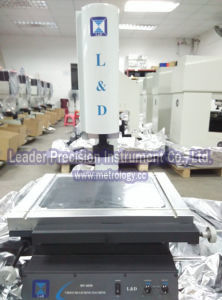

    Inspection and measurement System EV-4030 is a photoelectric measuring system with high precision and efficiency. This non-contact optical measurement device is composed of a series of precision components, such as Color CCD Camera with high resolution, continuous Zoom Lens, Precise Linear Scale, USB exchanger box or Metrology Counter (DRO), 2D Metrology measuring software and high precision Working Table.
    Inspection and measurement System EV-4030 is mainly applied in 2D measurement, sometimes in 3D as well. This non-contact optical measurement device is widely used in different kinds of precision finishing industries, such as electronic part, precision mold, precision tool, spring, screw processing, plastic, rubber, oil seal valve, camera part, pedal cycle part, motor part, conductive rubber and PCB processing.
    Inspection and measurement System EV-4030 is a must for the metric room, laboratory or workshop of various sectors concerning to machinery, electronics, gauging instrument, watch, plastic and light industry as well as academies, research institutions and measurement-inspecting department.
    You can see it, we can measure it!



    Features & Advantage
    1. DIN 00 grade granite table master base guarantees strength, accuracy and stability
    2. High Precision T-slot stages are available
    3.0.5µm high resolution linear encoder
    4. LED ring light surface illumination and adjustable LED contour illumination
    5. Superb full-color high resolution image with zoom optics
    6. High resolution S-video color CCD camera
    7. Sighting device: Cross-hair generator
    8. Connection: RS232 or USB output and metrology software
    9. One-click edge detection function



    Technical data

    Model No. EV-4030
    Travel-X.Y axis 400*300(mm)
    Travel-Z axis 200mm
    Resolution 0.5µm
    X,Y-axis accuracy (2.5+L/200)µm
    Repeatability 0.003mm
    Stage load capacity 20kg
    Zoom lens

    Optical: 0.7-4.5x

    Video on monitor: 23x-190x

    Camera High resolution CCD camera
    Illumination

    Contour illumination: LED light

    Surface illumination: LED ring light
