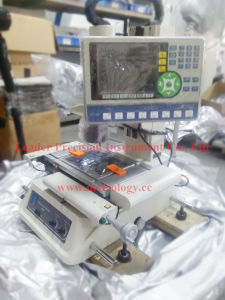

LCD counter Inspecting 0.5 Micron Tool-Makers Microscope In Metrology
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | MM300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Exporting Package |
| Delivery Time: | 14 WORKNG DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Magnification: | 10-100X | Number Of Cylinder: | Monocular |
|---|---|---|---|
| Optical Tube: | Monocular Tube(Standard), Binocular Tube | Eyepiece Lens: | 10X |
| Objective: | 1X(Optional), 3X(Standard), 5X(Optional) | Z Axis Travel (mm): | 200 |
| X/Y/Z-Axis Resolution: | 0.5 Micron | Load: | 20kg |
| Origin: | Guangdong | HS Code: | 9011200000 |
| Port: | Shenzhen, China | ||
| High Light: | Tool Makers Microscope In Metrology,0.5 Micron Tool Makers Microscope,Inspecting Stereo microscope |
||
Product Description
LCD counter Inspecting 0.5 Micron Tool-Makers Microscope In Metrology
Usage
MM series Tool maker microscope is a photoelectric measuring system of high-precision, high-efficiency. It is mainly applied in 2D measurement, sometimes in 3D as well with eyepiece gauge. The measurements of surface roughness, height, depth, steps, etc. are made simply by relative measuring method. MM series Tool maker measuring microscope is highly appreciated by manufacturers for its accurate measurement and inspection of objects, such as PCB, precision parts, ICs, magnetic heads, electronic components, etc. Expect for measuring length, angle, it also can be used as observation microscope.
Technical data
| Model | MM-3020 | ||||
| X,Y axis travel(mm) | 300*200 | ||||
| Stage glass size(mm) | 350*250 | ||||
| Z axis travel(mm) | 200 | ||||
| X,Y,Z axis resolution (μm) | 0.5 | ||||
| Length unit | Linear scale | ||||
| Measuring accuracy (μm) | 2.5+L/200 L=measuring length (mm) | ||||
| Operation mode | manual | ||||
| Eyepiece | WF10X(monocular or binocular tube) | ||||
| Objective lens | 1X | 3X(standard) | 5X | 10X | |
| 图像检测装置(选配) | High resolution CCD camera | ||||
| Measuring software | 2D | ||||
| Illumination | transmitted | LED ring light | |||
| contour | LED lamp | ||||
| Power supply | AC100~240V 50/60Hz | ||||
