Manual CMM Coordinate Measuring Machine with Renishaw MH20I
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | Find564 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | standard exporting package |
| Delivery Time: | 12 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Operation Method: | Manual | XYZ Stroke: | 500*600*400mm |
|---|---|---|---|
| Reader Resolution: | 0.5µm | Measuring Unit: | Renishaw Scale |
| Port: | Shenzhen, China | Origin: | China |
| High Light: | 0.5mm CMM Coordinate Measuring Machine,220V CMM Coordinate Measuring Machine,SGS manual cmm machine |
||
Product Description

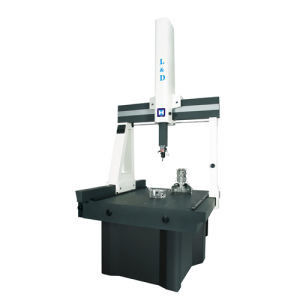

Manual CMM Coordinate Measuring Machine with Renishaw MH20I
Usage
CMM-find series Manual Coordinate Measuring machine is widely used in the field of machinery, automobile, aviation, mould, metal and high-precision tool manufacturing, which can inspect the geometric dimension, shape and position of the box, guide rail, gear, curve, cam and other work-pieces. This machine is necessary for CAD, CAE and CAM in reverse engineering.
Features & Advantage
1. Monolithic granite table, unilateral moving bridge structure, optimize the movement performance and ensure the stability and precision of the mechanical systems
2. Three axes use the 000 level high-precision nature granite guides, so three-axis has the same temperature characteristics, good rigidity and anti-aging deformation
3. All guides use high-precision air bearings, with pre-press design and no abrasion, run more smoothly and ensure excellent dynamic performance of the machine
4. Z-axis pneumatic balance design to improve motion features
5. Adopt the RENISHAW self-adhesive strip of metal reflection grating scale, so that three axes have the same coefficient of expansion and enhance the stability of the equipment
6. Adopt the high-precision RENISHAW MH20I probe
7. Adopt the JMC high quality air filter and regulator from Japan, which ensure that the machine can be used long-term stability
8. Powerful CMM software RationalDMIS provides the perfect solution for measurement, friendly interface, easy to learn and use.
Specification
| Model | Find564 | Find785 | Find7105 | Find7155 | |
| Travel (mm) | X | 500 | 700 | 700 | 700 |
| Y | 600 | 800 | 1000 | 1500 | |
| Z | 400 | 500 | 500 | 500 | |
| Driving System | Manual | ||||
| Count System | RENISHAW scale with 0.5µm | ||||
| Probing System | RENISHAW MH20I or MCP | ||||
| Measuring Software | RationalDMIS | ||||
| Structure | Sliding Bridge Type | ||||
| Guide | Air Bearing | ||||
| Accuracy (µm) | MPEE = ( 3 + L/250 ) | MPEE = ( 4 + L/200 ) | |||
| Max. load (kg) | 300 | 500 | |||
Environment
| Power Supply | 220 V ± 10% 50/60 Hz |
| Air Consumption | 120L/min at 0.4 MPa |
| Air Supply | ³ 0.5 MPa |
| Temperature | 18℃~ 22℃ |
| Humidity | 40 % ~ 70 % |
